| ブランド名: | Sinuo |
| モデル番号: | SN2202 |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 毎月10セット |

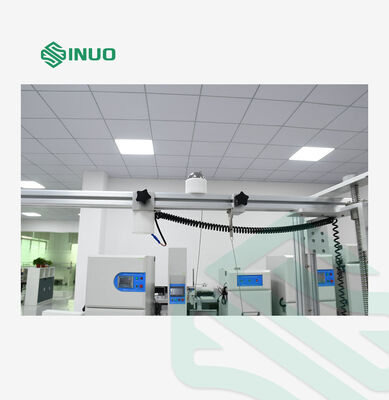

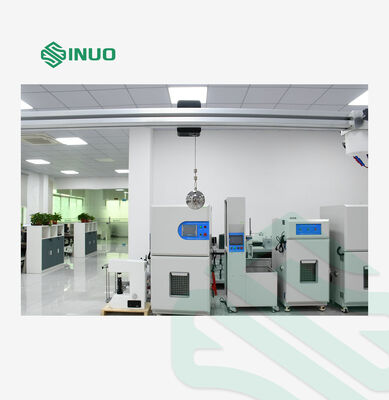

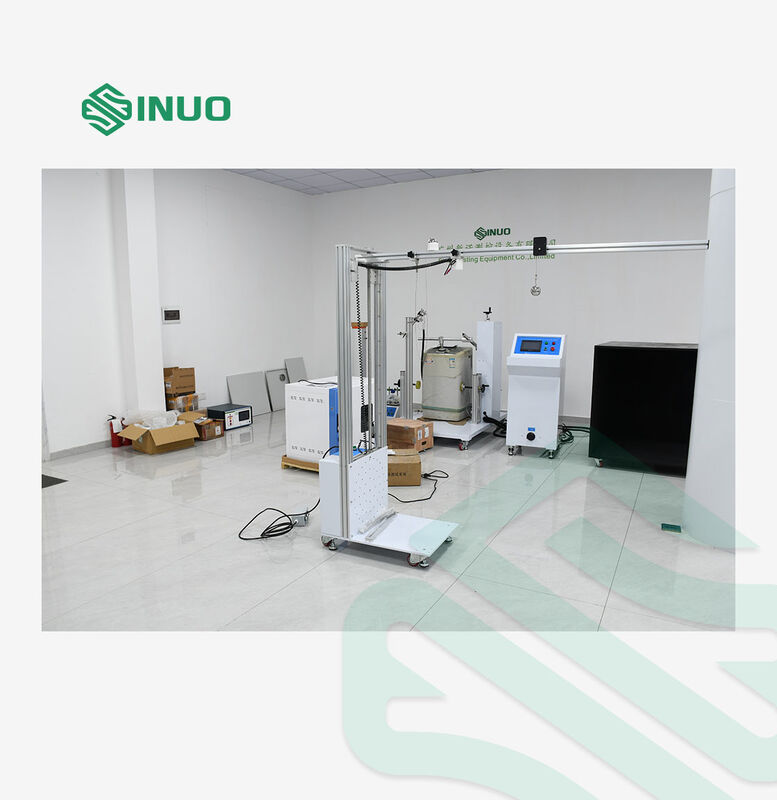

This steel ball impact tester is used to test the anti-drop impact performance of EV accessories. It features two switchable test modes: vertical free drop impact and horizontal pendulum impact on test samples. Equipped with electric lifting and electromagnetic clamping structure, it supports adjustable drop height from 0.4m to 1.5m to generate various impact energy as required.
• IEC62196‑1:2025 Clause 26.2
• IEC60950‑1:2005 Clause4.2.5
• IEC60598‑1:2014 Clause4.13.4a
• IEC60065:2005 Clause12.1.3 & Figure8
| Test Purpose | Conduct drop impact resistance test on equipment enclosures |
| Test Principle | Free vertical drop or free pendulum impact on test samples |
| Equipment Structure & Features | Supports two test modes: vertical drop impact and horizontal pendulum impact |
| Operating Environment |
Power Supply: AC220V±10%, 50/60Hz; Operating Temp: 0~40℃; Humidity: 30%~90% |
| Impact Steel Ball | Steel ball: Φ50.8 mm, mass 535 g |
| Impact Mode | Vertical drop impact and pendulum impact, switchable. |
| Drop Height | Adjustable range: 0.4 m ~ 1.5 m |
| Impact Energy |
Formula: E=mgH, supports impact energy values (J) listed below and custom requirements.
|
| Lifting Mode |
Electric drive |

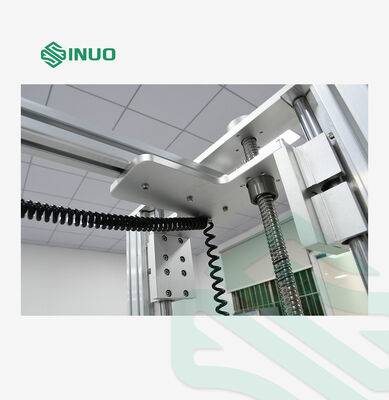

| Clamping Method |
Electromagnetic adsorption & release control |
