| ブランド名: | Sinuo |
| モデル番号: | SN2210-3T |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 毎月10セット |

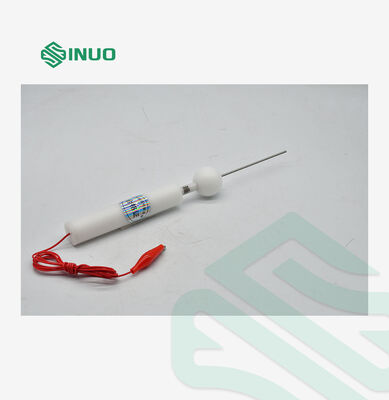

This test rod fully complies with the specifications of IEC 61032 Test Probe C. It is a mandatory testing tool specified in IEC 60335-1 Clause 22.1, IEC 60529 IP3X, IEC 60065 and other international safety standards.
Designed for enclosure barrier assessment, this slender test rod verifies equipment safety by checking two key criteria: whether housings prevent users from touching internal hazardous components, and whether they block penetration by small hand tools.
| Parameters /Model | SN2210-3T |
|---|---|
| Name | Test rod probe C with force |
| Test Rod Diameter | Ф2.5+0.05 0 (mm) |
| Stop Face Diameter | Ф35±0.2 (mm) |
| Handle Diameter | Ф10 (mm) |
| Test Rod Length | 100±0.2 (mm) |
| Built-in Force | 3N force |
• Built-in stable 3N constant test force, no extra force calibration needed, delivering consistent and repeatable test data for every enclosure barrier inspection.
• Fully standardized dimensional tolerance strictly follows IEC 61032, perfectly matching global certification test requirements for IP3X protection.
• Comes with matched connecting wire to support live contact safety verification, one probe meets two core test demands at the same time.
• Wide compatible application range: household appliances, audio-visual equipment, low-voltage fittings and power supply products, applicable to lab R&D test and and factory batch inspection.
