| ブランド名: | Sinuo |
| モデル番号: | SNQC1006-100A |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 毎月10セット |
It is suitable for detecting the temperature rise test after the charging pile interface plug and socket pass the rated current, and assessing the heating of the surface of the electrical accessories when the load current is connected, and whether the temperature rise of the terminal meets the requirements of the standard.
This temperature rise test system meets the standard requirements of IEC 62196-3: 2022 clause 24, IEC 62196-1: 2022 clause 24, clause 34.2, 34.4 and 35.4, IEC 60309-1: 2012 clause 22, etc.

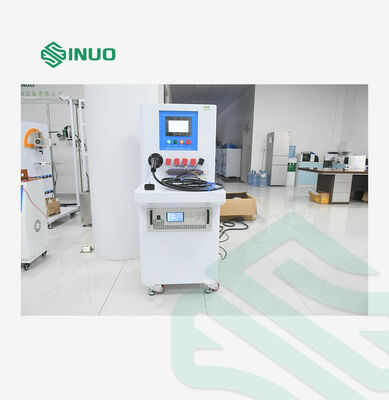

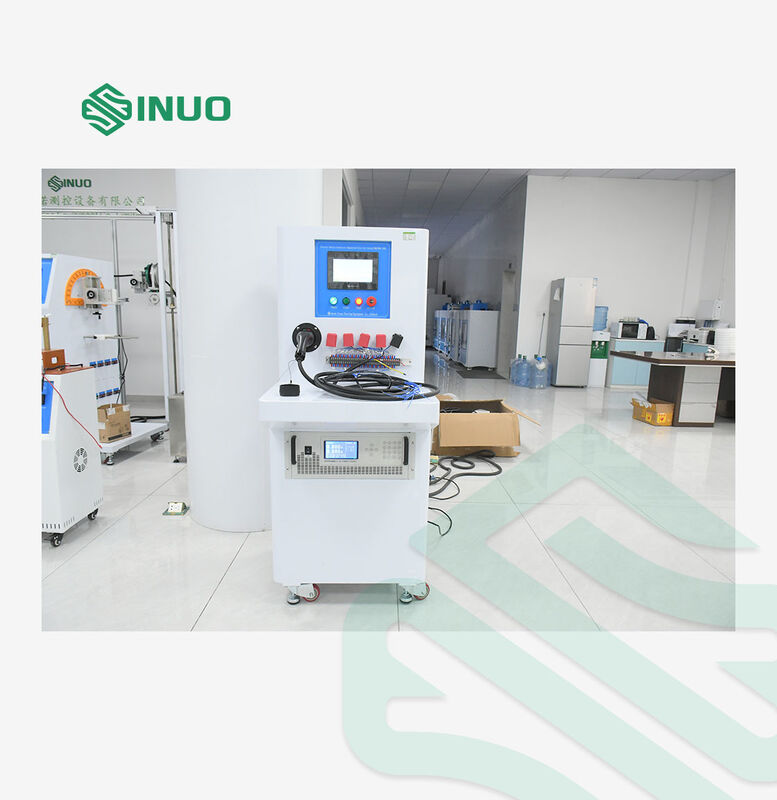

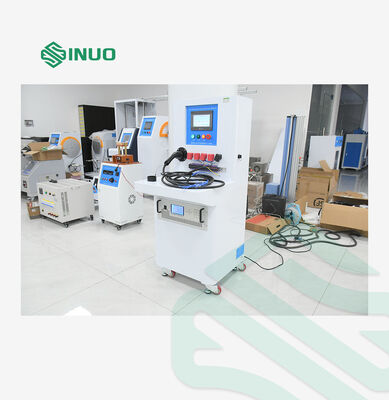

The temperature rise test system consists of an electric voltage regulator, a current transducer, a PLC programmable controller, a current sensor, a humanized touch screen and a movable chassis. It can stably output the test current, and eliminate the influence to the test current caused by the fluctuation of the power supply voltage, the connecting wire or the copper bar, and the resistance value of the sample, and improve the accuracy of the test result. The power supply have functions of low loss, high efficiency, easy operation, complete control and detection. The touch screen can display the current value and the temperature values of each temperature measurement points in real time. The temperature value can be recorded every 2 seconds and report can be generated, which can be stored in a USB flash drive and copied to a computer for viewing and printing.
| Temperature Measurement Point | 16 channels |
| Operation Method | Color humanized touch interface |
| Output Constant Adjustable Current | AC 0-100A |
| Output Current Mode | Continuous/ Intermittent |
| Load Test Output Voltage | Below AC 5V |
| Current Resolution | 0.1A |
| Ammeter Accuracy | ±1%±3 bytes |
| Voltmeter Accuracy | ±1%±3 bytes |
| Continuous Mode Test Time | 0.01～99.99 hours |
| Intermittent Mode Test Time | 0.01～99.99 hours |
| Intermittent Mode Test Cycles | 1～99999 cycles, automatic shutdown when the test cycles reach to the preset value |
| Temperature Measurement Range | 0～400°C, accuracy 0.3% reading + 1°C; resolution: 0.1°C |
| Temperature Data Acquisition | Configure RS232 communication interface and data record interface |
| Temperature Scanning Speed | 1 to 255 seconds all channels |
| Temperature Data Record | The data can be stored U disk |
| Temperature Measuring Thermocouple | American Omega T-type 30AWG filament thermocouple, length 2 meters, a total of 8 pieces |
