| ブランド名: | Sinuo |
| モデル番号: | SNQC1006B-6500A |
| MOQ: | 1 |
| 支払条件: | T/T |
| 供給能力: | 月額10セット |

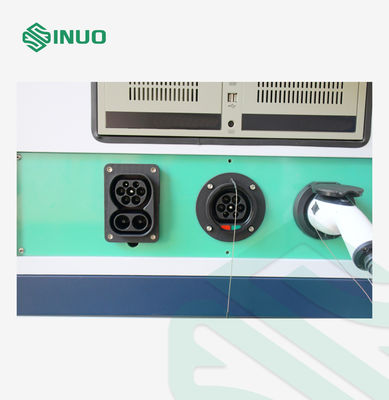

IEC 62916-3 EV Plug and Socket Temperature Rising Test System 6500A
Complied Standards & Clauses
This advanced test system is designed in compliance with IEC 62196-1 Ed.4 CDV 2020 (clause 12.3, clause 24, table 10, clause 34.2, 34.4, and 35.4), IEC 62916-2, IEC 62916-3, and other relevant standards.
Product Overview
This EV Plug and Socket Temperature Rise Test System is specially designed to evaluate the thermal performance and safety of electric vehicle charging interfaces. It fully complies with IEC 62196-1 Ed.4 CDV 2020 (Clause 12.3, 24, Table 10, 34.2, 34.4, 35.4), as well as IEC 62916-2 and IEC 62916-3 standards.
The system accurately measures the temperature rise of EV plugs, sockets, and terminals under rated current conditions, ensuring that all components meet international safety requirements. It also supports short-time high current withstand testing for grounding contacts, helping manufacturers verify product reliability and performance under extreme conditions.
Featuring precise temperature monitoring, stable current output, and intelligent data recording, this test system provides a reliable solution for EV connector thermal evaluation, quality control, and certification testing.
The system uses self-programmed software controlled by a computer. All standard test procedures and data judgments are controlled by the system, making operation easy. It is used to assess the surface heating and electrode temperature rise of charging interfaces and electrical accessories when connected to load current, and to check if the temperature rise meets the standard requirements.
Technical Parameters
|
Item |
Description / Specification |

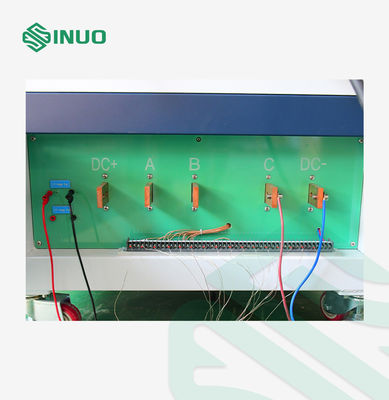

|---|---|
| 1. Output Workstation | 1 DC output station |
| Maximum Output Voltage | DC < 15V |
| Constant Adjustable Test Current Output | DC 200–6500A |
| Current Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 1A |
| Voltage Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 0.01V |
| Test Current Stability | ±(1% of set value + 0.5A), response time ≈ 1s |
| 2. Control Contact Power Supply | Current range: AC (0–2)A |
| 3. Operating Modes | Continuous Mode, On/Off Mode, Automatic Temperature Control Mode |
| Continuous Mode Test Time | 0.01–99.99 hours |
| On/Off Mode Power On/Off Time | 0.01–99.99 hours |
| On/Off Count | 1–9999 times, auto-stop after completion |
| Current Setting | Programmable control (configurable as per IEC 62196) |
| Automatic Temperature Control Mode | Automatically finds current for set temperature rise |
| Temperature Rise Setting Range | 0–100°C |
| Stability Accuracy | ±0.5°C |
| 4. Temperature Rise Testing (Built-in Temperature Inspection Device) | |
| Temperature Measurement Range | 0–260°C |
| Measurement Accuracy | ±0.3% of reading + 1°C |
| Resolution | 0.1°C |
| Temperature Measurement Points | 16 channels (including 1 ambient temperature point) |
| Supported Thermocouple Types | J, K, T, E, S, N, B, R |
| Thermocouple Used | USA Ω Co. K-type, 30AWG, 2m length, total 20 pcs |
| Temperature Probes | Support live testing without instrument damage |
| Scanning Speed & Recording Interval | 0.1–1800 seconds (all channels) |
| Temperature Data Recording | Automatic computer recording with software configuration |
| Ambient Temperature Compensation | Software automatically subtracts ambient temperature |
| 5. Voltage Drop & Resistance Testing | Equipped with mV meter for voltage drop and resistance calculation |
| 6. Touchscreen Integrated Industrial Control Computer | |
| CPU | Pentium 4 / 1.8G or higher |
| Memory | 4GB |
| Storage | 64GB SSD |
| Display | 15-inch LCD monitor |
| Operating System | Windows XP (English version) |
| Software | OFFICE software included |
| Power Setting Functions | Programmable (≥10 current segments, auto adjustment & reset) |
| Operating Modes | Continuous, On/Off, Automatic temperature control |
| Data Display | Real-time temperature, current, and time curve display |
| Sampling Frequency / Data Recording Interval | Adjustable from 100ms–1800s |
| Data Storage | ≥8GB storage, automatic/manual saving |
| Data Export | USB export (CSV, XLSX, etc.) |
| 7. Power Supply | AC 220V ±10%, 50/60Hz, 50KVA |
| 8. Dimensions & Weight | 1000mm (W) × 1300mm (D) × 1800mm (H); ≈400kg |
| Mobility | Heavy-duty casters with brakes |
| 9. Protection | Automatic cut-off for overload/overcurrent; stable long-term operation |
| 10. Temperature Rise Test Fixture | Size: 800 × 400 × 400mm; Acrylic transparent cover |

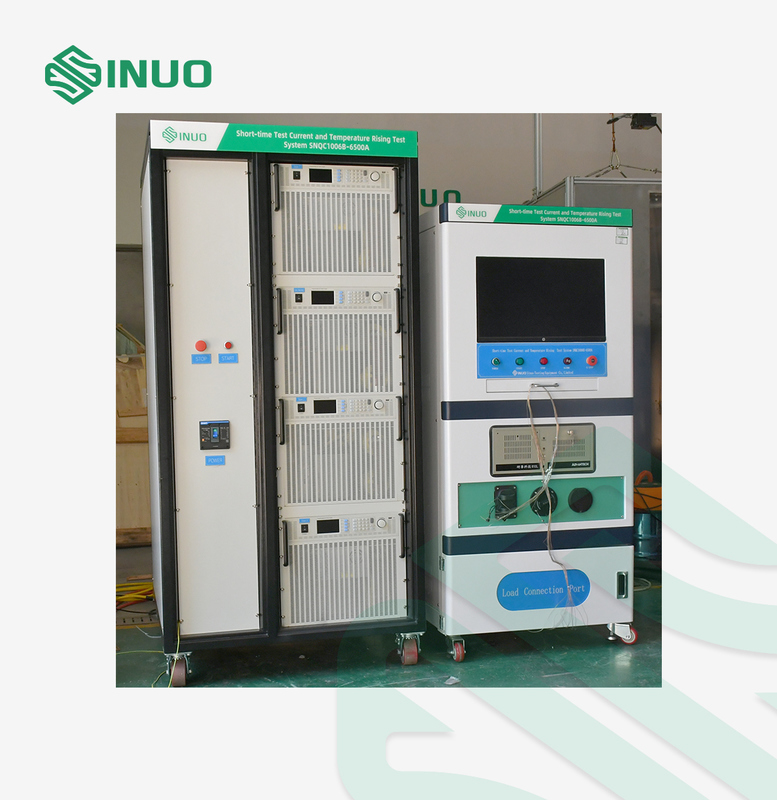

| 11. General Equipment Diagram | Includes complete system with computer setup |
