| ブランド名: | Sinuo |
| モデル番号: | SNF02 |
| MOQ: | 1 |
| 支払条件: | T/T |
| 供給能力: | 10 Sets Per Month |
EV Connector Durability Test Machine Static Force Test Machine for EV Connectors
Complied Standards & Clauses
Conforms to IEC 62196-1:2022, etc.
Product Overview

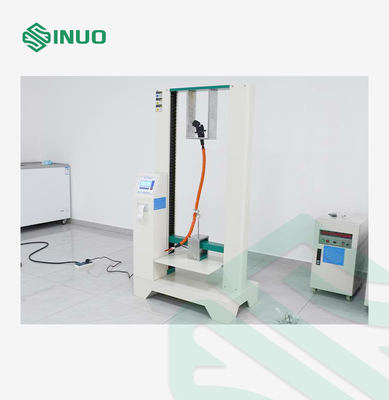

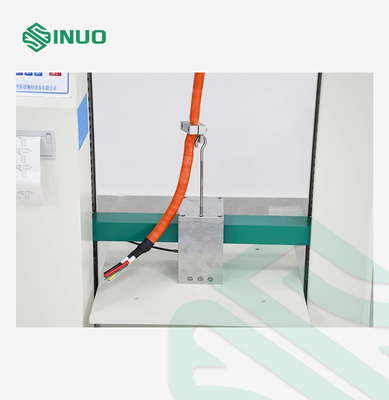

The Static Tension and Compression Test Device is specially designed to evaluate the mechanical strength and reliability of EV charging gun cable assemblies. It performs pull (tensile) and compression testing on EV charging cables to ensure that the cable clamping structure can withstand the mechanical forces encountered during regular use.
Equipped with a motor-driven dual-column frame and a touch screen interface, this machine offers precise control over force, duration, and speed. With a built-in force-time curve display, it provides real-time feedback during testing, ensuring highly accurate results.
This equipment is ideal for R&D departments, EV connector manufacturers, and quality control labs requiring customizable and repeatable mechanical strength tests for charging connectors.
Technical Parameters
|
Parameter |
Specification |
|---|---|
| Model | SNF02 |
| Sample Type | EV Charging Gun |
| Workstation | Single station |
| Control Method | Touch screen operation |
| Drive Mode | Motor-driven |
| Clamping Method | Mechanical clamping |
| Fixtures | 2 pcs tensile fixtures, 1 pc 500×500 mm compression plate |
| Inner Frame Dimensions (W×D×H) | 600 × 600 × 1000 mm |
| Height Stroke | 0–600 mm |
| Test Speed | 1–300 mm/min (adjustable) |
| Force Holding Time | 1–999 s (countdown starts when set force is reached) |
| Force Range | 0–5000 N (sensor monitored, presettable) |
| Force Units | N, kg, lb (switchable) |
| Accuracy | Class 0.25 |
| Resolution | 0.1 N |
| Curve Display | Force-time curve |
| Test Functions | Tensile test, Compression test for EV charging connectors |
| Power Supply | AC220V ±10%, 50–60Hz |
| Working Temperature | 0–40°C |
| Humidity Range | 30%–90% RH |
| Dimensions (W×D×H) | Approx. 1200 × 600 × 1800 mm |
| Weight | Approx. 220 kg |
Details
