| ブランド名: | Sinuo |
| モデル番号: | SNQC1016 |
| MOQ: | 1 |
| 支払条件: | T/T |
| 供給能力: | 月10セット |

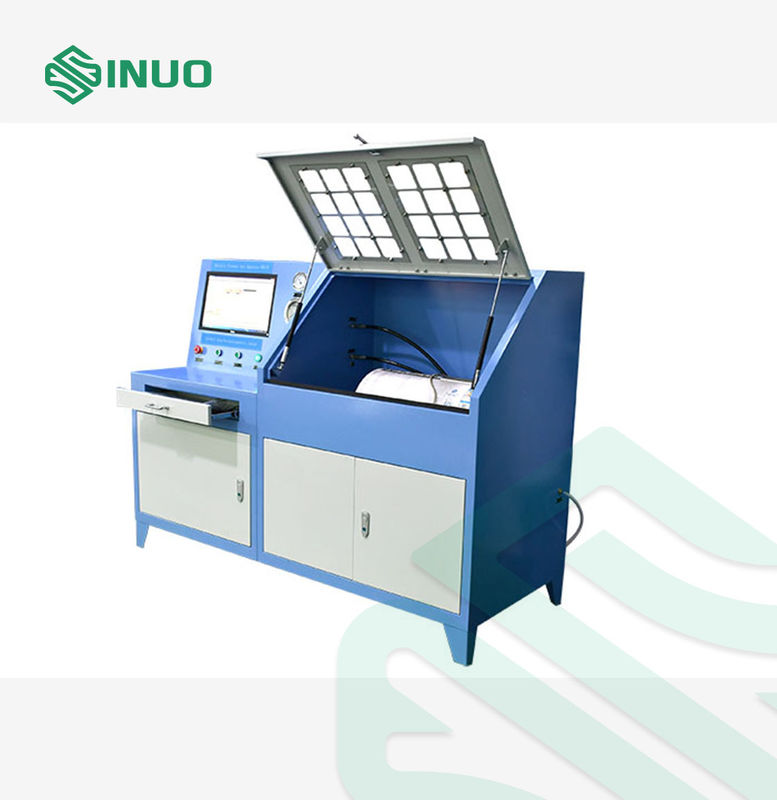

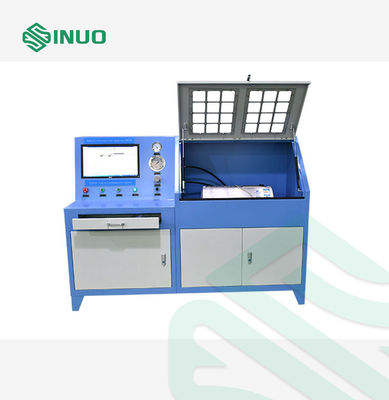

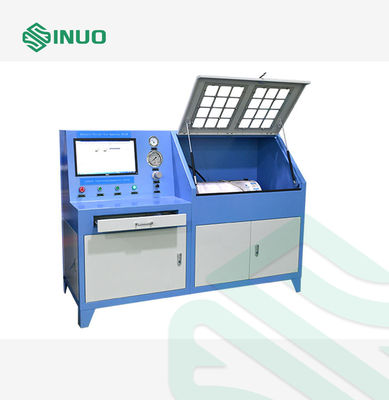

Computer Controlled Pressure Testing Automotive Hydrostatic Test Equipment
Complied Standards & Clauses
It can meet the national standard ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.
Product Overview
Sinuo has rich experience in pressure testing. It provides reliable pressure/burst test equipment, leakage test equipment, and pressure pulse test equipment in the field of pipeline and reactor testing. It can perform pressure performance tests on hydraulic hoses, hydraulic hose assemblies, automobile brake pipes, pressure vessels, powertrain pipes and other pressure-resistant parts according to ISO6802, ISO6803, ISO8032, IEC 60335-2-34 and other standards.
Our company has developed a new type of pressure test device based on the working principle of the pneumatic booster device introduced from abroad and combined with the actual situation in my country. The burst (pressure resistance) test equipment produced by our company includes: hose pressure burst test bench, hose pressure pulse test machine, automobile parts pressure test bench, burst test bench, etc. This equipment meets other general and special international and domestic test standards for pressure components.
Technical Parameters
| Item | Specifications |
| Need air source | 0.2-0.8MPa, 1.0Nm3/min (gas source provided by the customer) |
| High pressure | 2-100Mpa (automatic conversion with high pressure pump) |
| Pressure increase rate | The ratio is controllable, the adjustment range is 0.1-2MPa/S, and it can be adjusted arbitrarily. |
| Measurement accuracy | ±0.5%FS |
| Time of pressure maintenance | Arbitrary setting, with seconds as the timing unit |
| Data collection | American NI high-speed acquisition card, acquisition rate 100,000 times/S. |
| Peak record | Measurement and control Labview software records |
| Test station | One |

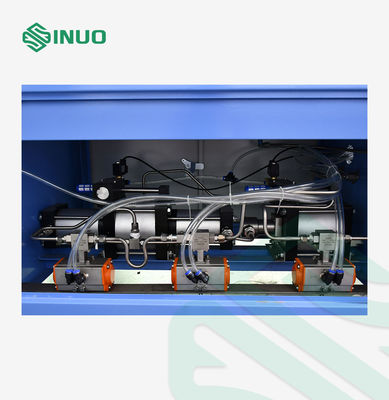

| Power device | Gas-liquid booster pump |
| Exhaust system | Semi-automatic |
| Test medium | Clean water |
| Medium temperature | Normal temperature |
| Export flow rate | 1.2L/min |
| Volume | 30L |
| Operating temperature | 0-80℃ |
| Output interface | RC1/4 internal thread |
| Control box size | 1800*700*1300 |

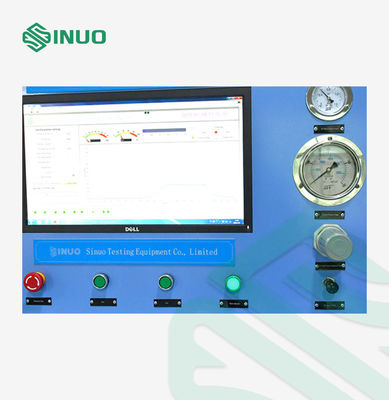

| Control System | Computer automatic control |
| Monitor | Mosaic Industrial Display |
| Control Software | Labview Software |
| Test report | Microsoft Office |
Details
