| ブランド名: | Sinuo |
| モデル番号: | SNQC1005A |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 毎月10セット |
This tester verifies whether electrical accessories such as EV charging interfaces, industrial plugs, sockets and couplers can withstand mechanical, electrical and thermal stresses generated during normal operation without excessive wear or other detrimental defects, so as to validate their reliability.
• IEC62196-1:2025 Plug,socket-outlets,vehicle connectors and vehicle inlets–Conductive charging of electric vehicles-Part1: General requirements clause 22 and 23
• UL 2251 Section 44
Electric vehicle charging connectors, industrial plugs, sockets and couplers.
Driven by a servo motor mechanism, the equipment performs repeated linear insertion & withdrawal cycles on test samples. It supports external electrical load for make-and-break testing. Parameters including power-on/power-off duration, test speed, stroke and angle can all be preset via the touchscreen.

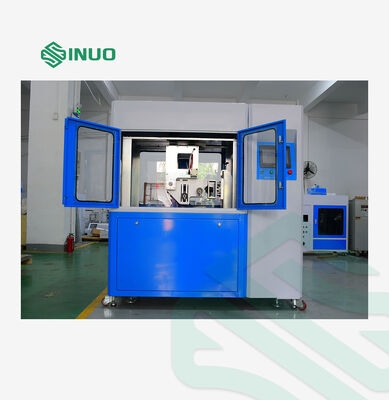

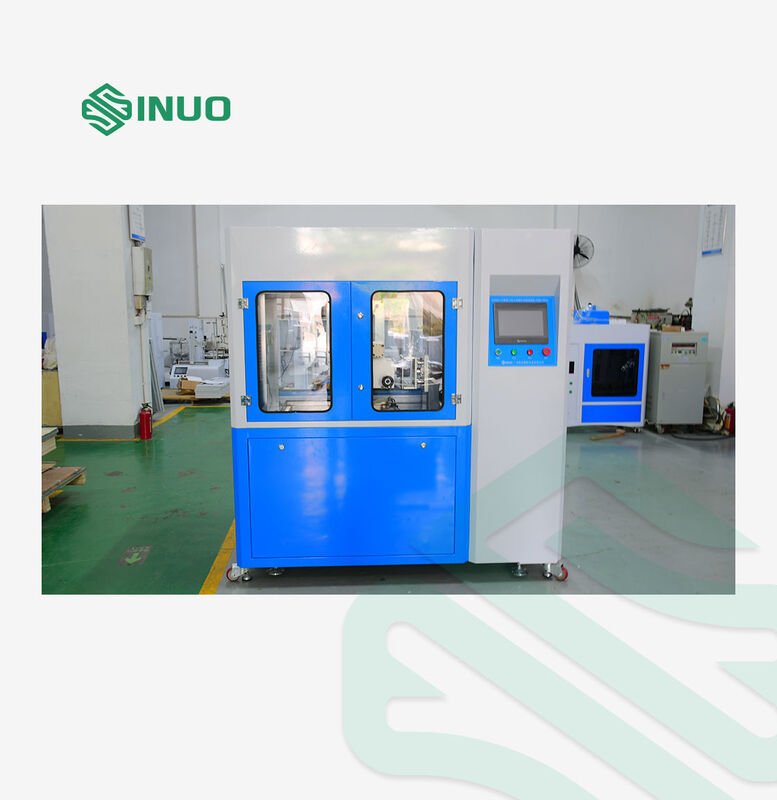

Adopts an integrated machine frame driven by servo motor with precision reducer transmission. Equipped with a color touchscreen featuring user-friendly operation and powerful digital display functions, plus an intelligent PLC control system.

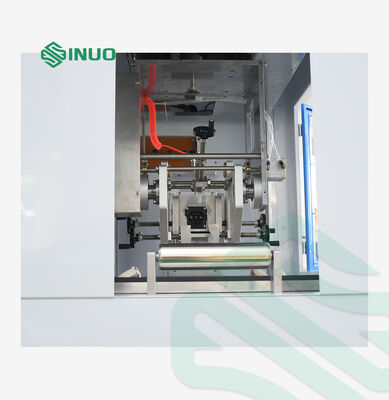

It comes with 3-axis adjustable fixtures, perfectly suited for lifespan testing of charging gun connectors.
| Main Performance Specifications | |
| Test Items | a) Endurance test for mechanical locking mechanism b) Analysis capability c) Normal operation (service life) |
| Test Sample Scope |
AC and DC charging guns |
| Stations | Single station |
| Electrical Control Mode | Intelligent integrated control with Mitsubishi PLC, operated via 7-inch color HMI touch screen |
| Operation Mode | Manual or program-controlled operation |
| Functions | Capable of simulating normal operation of charging interfaces. It can integrate insertion/withdrawal cycling and unlocking/locking of the mechanical locking device, or run separate individual tests. Test speed, test duration and cycle counts are fully programmable. |
| Driving Mode | Servo motors drive insertion/withdrawal and rotational shaking movements; auxiliary air cylinders control opening and closing of the interlock switch mechanism. |
| Specimen Fixture & Clamping Method |
Mechanical clamping fixtures with 3-axis X/Y/Z adjustable structure. The clamping position can be freely adjusted, compatible with GB, US and EU standard AC & DC EV charging connectors. |
| Automatic Rotation Function | Built-in automatic turnover mechanism at the charging gun clamping station, supporting 90° rotation. The holding duration after rotation is adjustable from 0 to 600 seconds. |
| Test Cycles | Programmable range: 0 ~ 999,999 cycles. The machine will stop automatically once the preset cycle target is reached. |
| Make-and-Break Contact Duration | Adjustable from 1 to 999.9 seconds. Per standard requirement, the electrical contact holding time shall be no less than 2s and no more than 4s. |
| Insertion & Withdrawal Rate | Programmable range: 0–10 cycles per minute (equivalent to 3.75 cycles/min or 7.5 strokes/min) |
| Test Stroke | Adjustable from 0–150 mm (the gap between test plug and receptacle shall be ≥50 mm as required) |
| Test Speed | 0–850 mm/s, directly configurable via the touchscreen |
| Force Value Display | Equipped with a 100kg range force sensor to monitor force in real time. It can generate force-time curves, display the maximum insertion force, maximum withdrawal force and real-time force value.
Force measuring range: 0 ~ 1000 N
Indication error: ≤±0.5% F.S.
Resolution: ≤0.1 N
|
| Locking Device | Features automatic pressing function for mechanical locking mechanisms to simulate normal operating conditions. |
| Solution Tanks | Three independent test liquid tanks are provided, which can separately hold the simulated solutions as defined in IEC 62196-1:2022: Table 10: Acid rain simulation solution Table 11: Salt water simulation solution Table 13: Turbid water simulation solution |
| Liquid Immersion Parameters | Programmable parameters: immersion cycles, immersion duration, air-drying time, insertion/withdrawal cycles and total test cycles. |
| Load | External load connection supported |
| Detection Function | When an external load is connected, the machine triggers an open-circuit alarm and records the current test cycle count. |
| Safety Protection | Earth protection, short-circuit protection and overload protection |
| Operating Environment | |
| Power supply | AC 220V±10%, 50–60Hz, 2kW |
| Operating temperature | 0–40°C |
| Humidity range | 30%–90% |
| Overall dimensions | Approx. W1000 × D750 × H1200 mm |
| Weight | Approx. 150 kg |
