| ブランド名: | Sinuo |
| モデル番号: | SN446C |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 30セット/月 |
| Parameter | Specification |
|---|---|
| Spray Water Temperature | 3°C to 45°C ± 3°C (Adjustable and Displayed) |
| Spray Flow Rate | 0-10 L/min ± 0.5 L/min (Adjustable and Displayed) |

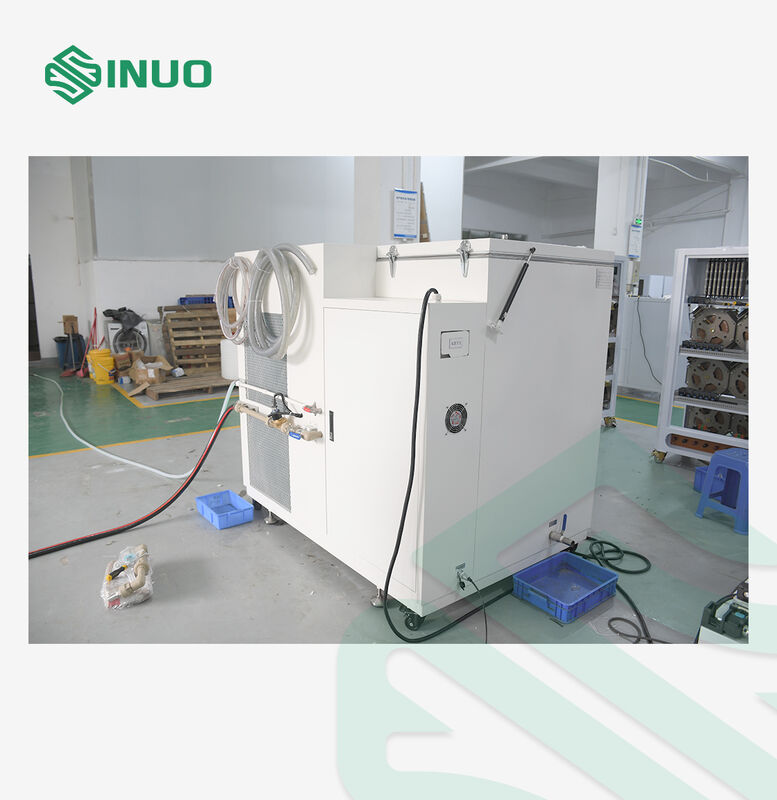

| Water Tank Capacity | ≥ 450L with auto refill, overflow drain, and alarm |

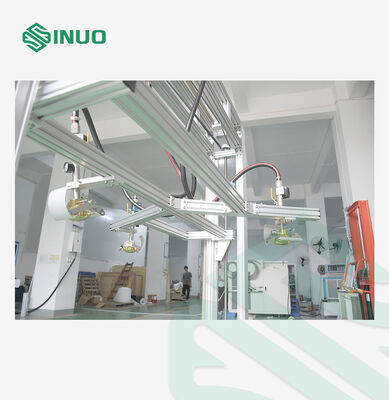

| Spray Nozzles | 3 brass nozzles, IPX4 compliant, adjustable positions |
| Spray Coverage Area | 1.5 m (L) * 1.0 m (W) |

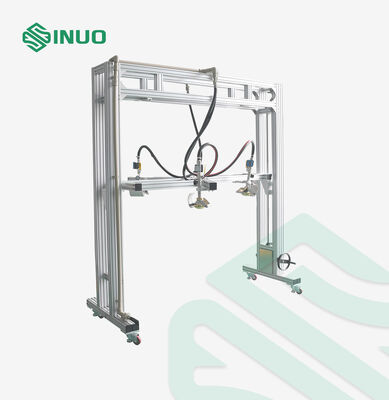

| Support Frame Lift Range | Adjustable from 0.5 m to 1.7 m |
| Water Filtration | Triple-stage filter (removes visible particles) |
| Heating/Cooling System | Integrated or separate; automatic stop when refilling |
| Cycle Control | Programmable T1 (4 hrs off) / T2 (0.5 hrs on) cycles |
| Mobility | All main components equipped with locking caster wheels |
| Power Supply | 3-phase 380V ±10% / Single-phase 220V ±10% |
| Air Pressure Supply | 0.4 MPa - 0.6 MPa |
| Safety Features | Emergency stop, water level alarm, leakage protection |
| Maintenance Support | Replaceable filter cores (3 included) |
| Display Interface | LCD with touch input (Chinese menu supported) |
| Measurement Certification | Third-party CNAS calibration for flow and temperature |
| Installation Environment | Mobile use with walk-in thermal chambers |
