| ブランド名: | Sinuo |
| モデル番号: | SN882B |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 20セット/月 |
| Parameter | Specification |
|---|---|
| Model | SN882B |
| Sample Size | WDH=1100*600*500(mm) Inner size sample |
| Sample Placement Area | Chamber type WDH=1140*600*500(mm) |
| Shape Space | Approximately 1400*1750*750(mm) W*H*D |
| Center Distance Between Lamps | 70mm |
| Sample Test Surface to Lamp Center | 50±3 mm |
| Nozzle Quantity | Top row 4 pcs |
| Spraying Pressure | 70～200Kpa adjustable |
| UV-B Lamp Irradiation | 0～0.9 W/m² at 313nm, adjustable |
| UV-A Lamp Irradiation | 0～0.9 W/m² at 340nm, adjustable |

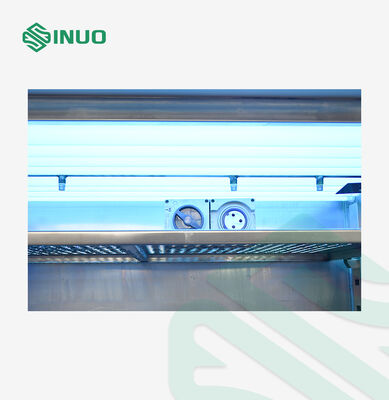

| Lamp Length | 1220mm |
| Lamp Power | 40W |
| Lamp Lifespan | More than 1600 hours |
| Number of Lamps | 8 pcs lamps in top row (UV-A/UV-B selectable, defaults to UV-A) |
| Weight | 80 kg |
| Maximum Power | 3 KW |
| Maximum Current | 15A |
| Power Supply Requirements | AC 220V single-phase, ±10% voltage fluctuation, 50/60Hz frequency, TN-S or TT power supply, protective grounding resistance less than 4Ω |
