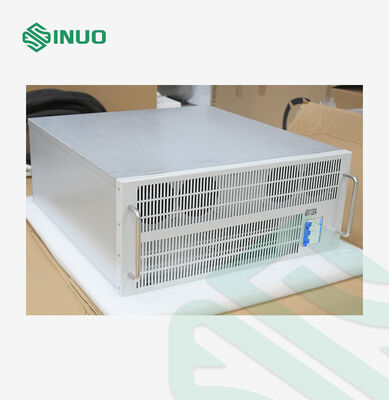

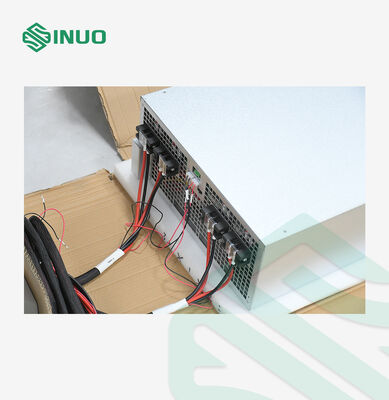

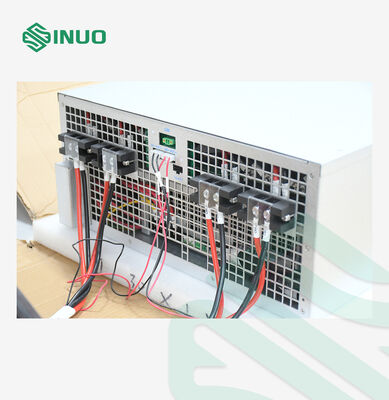

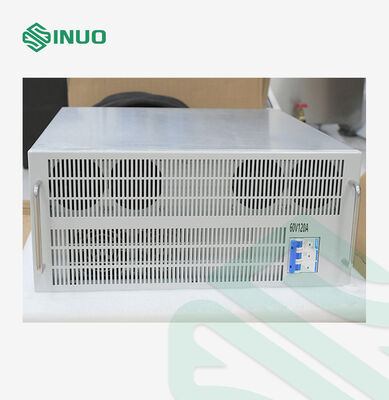

EV Battery Testing Equipment with 60V 120A Capacity Featuring Fully Independent Channels and High Precision Feedback Technology

ブランド名:	Sinuo
モデル番号:	SN552-30V200A
MOQ:	1
価格:	Customized
支払条件:	T/T
供給能力:	1セット/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

Calibration Certificate (Cost Additional)

放電電電圧範囲:

8V～60V

充満電圧範囲:

0V～60V

最低の出力電流:

±300mA

最大出力電流:

±120A

現在の変換時間:

≤40ms

現在の起動応答時間:

≤20ms

チャンネルアクションモード:

完全独立

メインチャンネル数:

2チャンネル

パッケージの詳細:

合板ケース

供給の能力:

1セット/月

ハイライト:

60V 120A EV Battery Testing Equipment

Fully Independent Channels Battery Charge and Discharge Tester

High Precision Feedback Lithium Battery Testing Equipment

製品説明

EV Battery Testing Equipment

Comprehensive safety testing equipment enabling overcharge, overdischarge, and thermal runaway simulations for lithium battery systems.

Equipment Overview

High-precision feedback-type battery pack detection equipment designed for comprehensive performance testing of lithium-ion batteries. This system delivers exceptional power, efficiency, precision, and performance characteristics.

Tests lithium-ion battery capacity, state of charge, overcharge, and over-discharge parameters
Advanced electric energy feedback technology minimizes heat emission and power consumption
Modular architecture including host computer, middle computer, DC/AC and DC/DC modules
Real-time data collection for voltage, current, capacity, and energy metrics
Optional battery temperature data collection capability
Comprehensive database storage with advanced data analysis and reporting functions

Technical Specifications

Performance Parameter	Specification
Number of Main Channels	2 Channels
Channel Action Mode	Fully Independent
Main Channel Working Modes	Charging: CC, CV, CCCV; Discharging: CD, CP, Constant Voltage; Standby, Stop
Test Termination Conditions	Time, Voltage, Current, Capacity
Main Channel Voltage Range	Charging: 0V-60V; Discharge: 8V-60V
Voltage Accuracy	±(0.05%RD+0.05%FS)
Voltage Resolution	0.1mV
Main Channel Current Range	±300mA to ±120A
Current Accuracy	±(0.05%RD+0.05%FS)
Current Resolution	0.1mA
Current Response Time	Start: ≤20ms; Conversion: ≤40ms
Time Resolution	1000ms
Output Power	Single Channel: 7200W Maximum
Power Stability	±0.1%FS
Efficiency	Charging/Discharging: 85% Maximum
Harmonic Distortion	≤3%
Power Factor	≥0.99
Auxiliary Channel Function	Condition-based step termination or switching
Communication Interface	RJ-45 Network for stable, real-time data collection
