| ブランド名: | Sinuo |
| モデル番号: | SN5513 |
| MOQ: | 1 |
| 支払条件: | T/T |
| 供給能力: | 毎月10セット |
It conforms to IEC 62133-2: 2017 clause 7.3.9, JISC8714:2007 5.5, and etc.

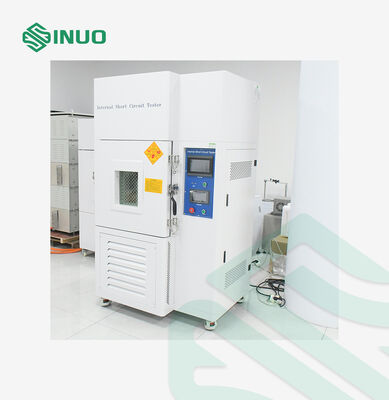

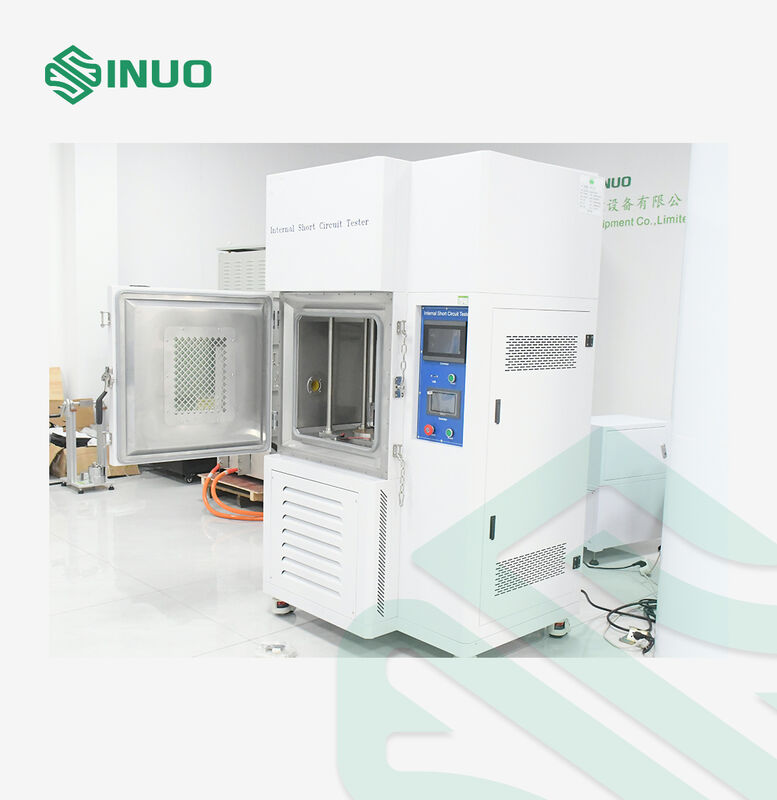

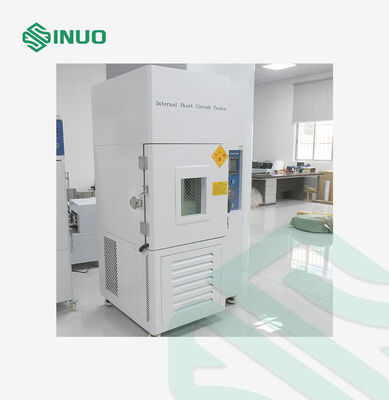

This battery forced internal short-circuit tester is an integral testing equipment to performance a comprehensive test for temperature, voltage, internal-short circuit, which is applicable for battery cell safety test.
|
Main technical parameters of temperature control chamber |
||
|
1 |
Temperature range |
0 ~ 100℃ |
|
2 |
Analytical accuracy |
0.1℃ |
|
3 |
Temperature fluctuation |
±2.0℃ |
|
4 |
Low temperature |
0℃ |
|
5 |
Heating rate |
Average 3℃/min (from 0℃ to 100℃, non-linear no-load) |
|
6 |
Cooling rate |
Average 1℃/min (from 100℃ to 0℃, non-linear no-load) |
|
7 |
Heater |
Fin type heat pipe shaped stainless steel electric heater |
|
8 |
Air supply circulation system |
Convection air circulation system |
|
9 |
Safety devices |
Over-temperature alarm, MCCB overload protection, etc. |
|
10 |
Insulation material |
Rigid polyurethane foam + high-efficiency compressed glass wool |
|
11 |
Thermostat |
TEMMI controller imported from Korea |
|
12 |

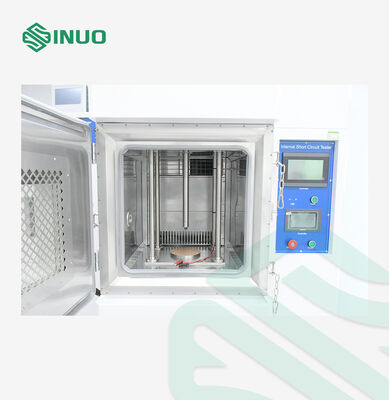

Inner chamber size |
W400*H500*D500mm |
|
13 |
Inner chamber material |
Mirror stainless steel plate, bottom reinforcement |
|
14 |
External chamber size |
W1200 X H2000 X D1000MM; |
|
15 |
External chamber material |
Cold rolled steel paint treatment |
|
Main technical parameters of force test system |
||
|
1 |
Force range |
1kg-200kg |
|
2 |
Unit |
Kg/N/Lb |
|
3 |
Squeeze stroke |
0~300MM |
|
4 |
Force display accuracy |
1N |
|
5 |
Resolution |
1/10,000 |
|
6 |
Force accuracy |
≤0.5％ |
|
7 |
Speed display accuracy |
1mm |
|
8 |
Driven type |
Servo motor drive |
|
9 |
Squeeze speed |
The squeeze speed is adjustable. The speed of the first contact point during squeeze can be set to 1.5cm/s; the test process speed range is 0.01~900MM/MIN (adjustable, 0.1~1.5CM/S) |
|
10 |
Squeeze head size |
10*10*5mm or 10*10*2mm |
|
11 |
Squeeze head material |
One piece each of nitrile rubber (NBR, side 10mm, thickness 2mm) and acrylic (acryl, side 5mm, thickness 2mm) |
|
12 |
Squeeze workbench material |
Aluminum alloy plate or 316 stainless steel plate, corrosion resistant |
|
13 |
Suitable Battery size |
300 X 300 X 300mm(WXDXH) |
|
14 |
Visual window |
300 X 300mm explosion-proof glass |
|
15 |
Air supply outlet |
There are two air supply vents on the left side of the box. |
|
16 |
Lighting |
There is a lighting lamp inside the box, which can illuminate the entire testing space |
|
17 |
Voltage collection range |
0-100V, acquisition frequency 100HZ/second |
|
18 |
Voltage resolution |
0.1mv |
|
19 |
Voltage acquisition frequency |
100/s |
|
20 |
Deformation range |
0-300MM |
|
21 |
Max. test plane |
300X300MM |
|
22 |
Power supply |
220V 50HZ |
|
23 |
Power |
2.0KW |
|
24 |
Machine weight |
Approx.350KG |
