| ブランド名: | Sinuo |
| モデル番号: | SN4410 |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 30セット/月 |
| Parameter | Specification |
|---|---|

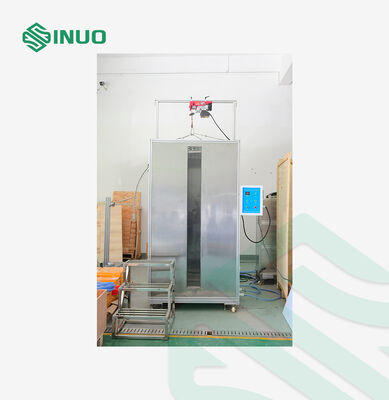

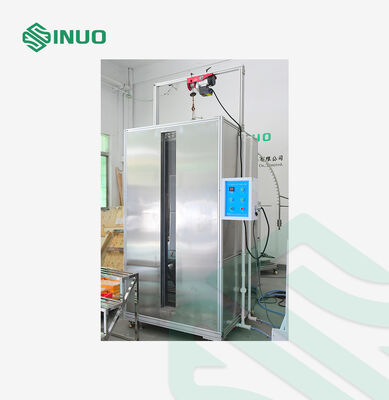

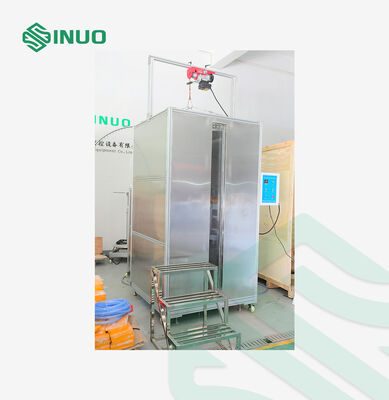

| Chamber External Size | Approximately W 1080 * D 1080 * H 2300mm (including casters) |
| Chamber Inner Size | Length 1000 * W 1000 * H 1800mm |
| Maximum Test Water Depth | 1.8m |
| Observation Window | Tempered glass (thickness: 12mm) |
| Observation Window Width | 200mm |
| Water Level Adjustment Method | Water inlet / drain valve, manual adjustment |
| Water Level Display | Scale (accuracy 1mm) |
| External Chamber Material | Stainless steel plates + Aluminum profile frame |
| Inner Chamber Material | 2.0mm thickness stainless steel |

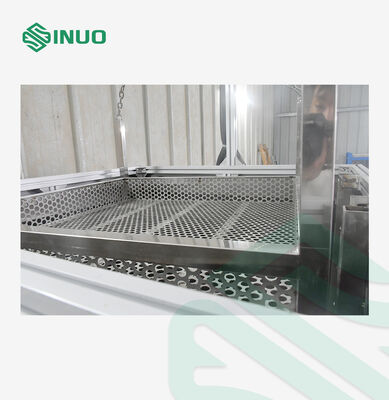

| Electric Lifting Basket | Made of stainless steel, controlled by electric hoist |

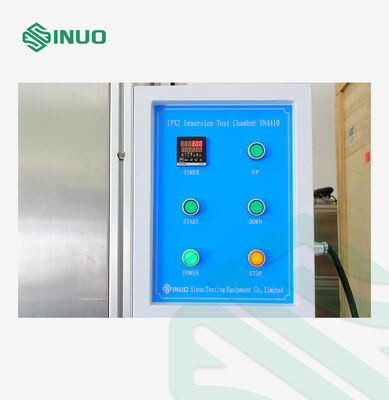

| Control Method | Buttons (non-PLC) |
| Test Time | 0.01 second - 99.99 hours can be preset |
| Immersion Depth Requirements | The lowest point of enclosure with height less than 850mm is located 1000mm below water surface. The highest point of enclosure with height equal to or greater than 850mm is located 150mm below water surface. |
| Test Content | IPX7 |
| Power Supply | AC 220V, 50Hz, 1KW |
