| ブランド名: | Sinuo |
| モデル番号: | SNQC1007B |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 20セット/月 |

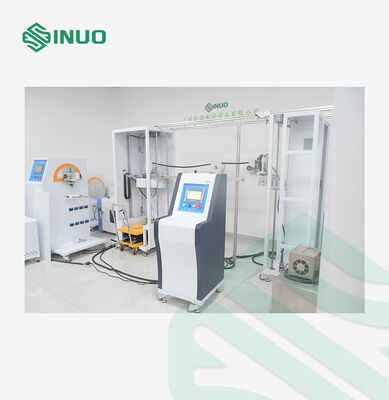

| Test Content | EV Charging Station Cable Pull and Torque Tests |
| Equipment Structure Schematic | |
| Control Operation Mode | PLC automatic control, touch screen operation |
| Torque Application | Meets 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications, realized by superposition of weights |
| Drive Mode | Electric |
| Pull Force Application | Meets 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights |
| Pull Cycles | 1-999999 cycles, can be preset, default is 100±1 cycles |

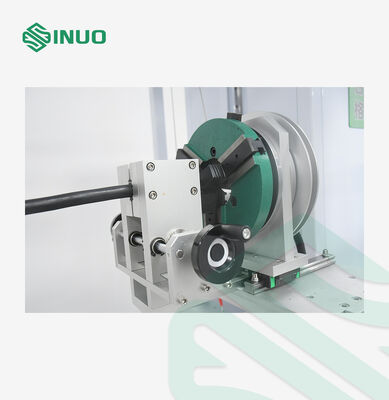

| Torque Wheel | R100mm(Ф200mm) ±0.5mm |
| Tensile Frequency | 1 time/s, the actual pull time is detected by electrical signal |
| Fixture | Universal clamp, one set |
| Torque Application Time | 0-99H59M59S, can be preset |
| Power Failure Protection | With power-off data storage memory function |

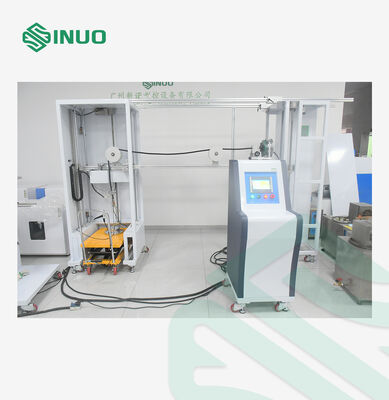

| Additional Configuration | The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions. |
| Weight Matching Selection Table | |
