IEC 60529 IPX3 IPX4 IPX5 IPX6 Oscillating Tube Rain Spray Test Equipment
Complied Standards & Clauses
Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.
Product Overview

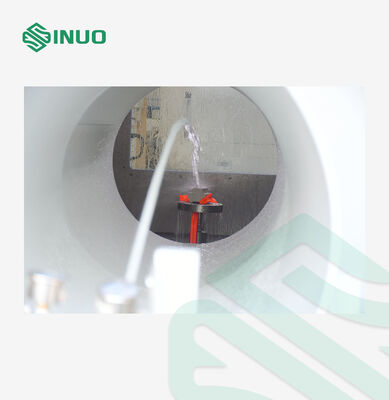

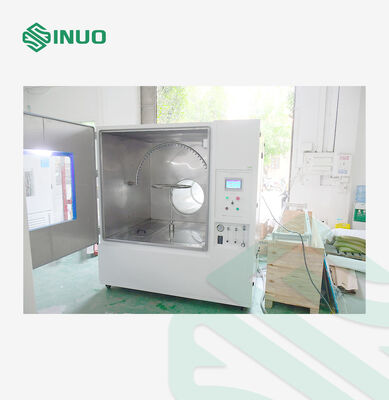

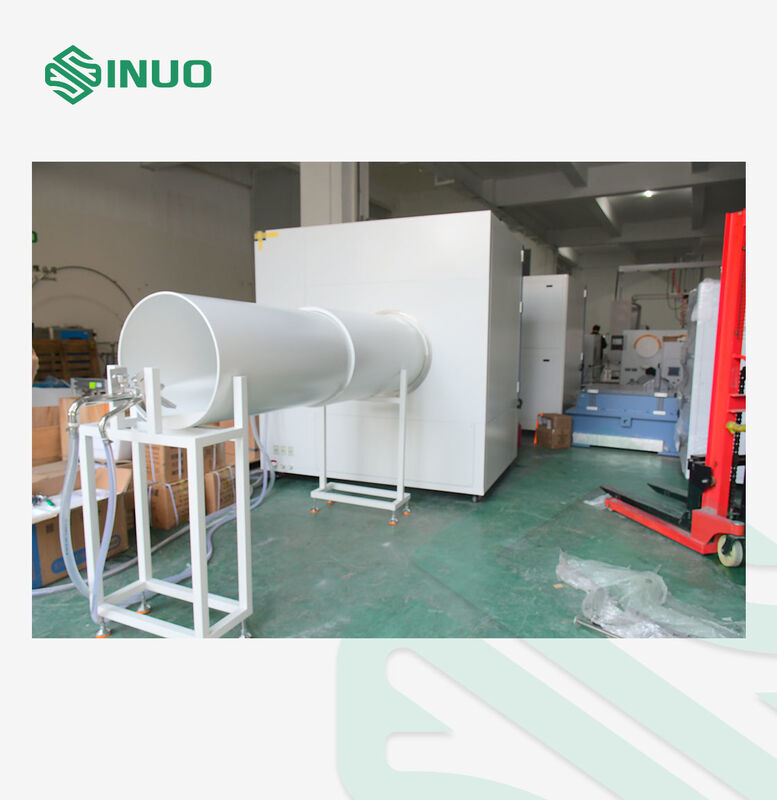

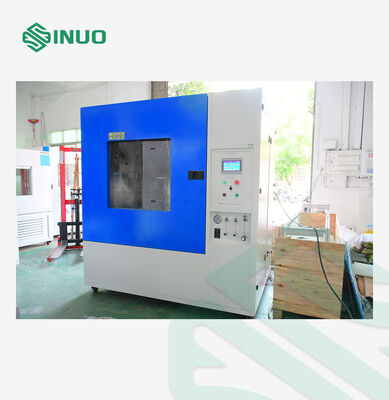

The Oscillating Tube Rain Test Chamber is designed to accurately evaluate the water ingress protection performance of products under IPX3, IPX4, IPX5 and IPX6 conditions. By simulating natural rainfall and powerful water spray environments, it provides a reliable and repeatable testing solution for assessing the durability and safety of enclosures exposed to water.
Widely used for outdoor lighting, household appliances, automotive components and electrical enclosures, this chamber helps manufacturers identify potential risks such as corrosion, deformation and electrical failure caused by water penetration. Compliant with international IP code standards, it supports product design validation, quality control and certification testing, ensuring products meet global waterproof requirements before market release.
Technical Parameters
| Basic Parameters | |
| Inner Chamber Size | L1400*W1400*H1400mm |
| Outer Chamber Size | L1880*W4200*H2200mm |
| Allowed dimensions of products | Length and width ≤1000mm, height ≤100mm |
| Turntable Diameter |
￠200mm and 600mm
|
| Turntable Maximum Load Bearing | ≤20KG |
| Test Time | 0-999 min |
| Flow Adjustment Method | Manually adjust flow by adjusting flow meter on the panel |
| Turntable Rotation Method | Always positive / positive and negative alternate |
| Turntable Speed | 1-5r/min (adjustable) |
| Power supply for sample |
Configured with a waterproof socket inside the chamber for client to power on sample during test
|
| Water supply for testing |
With a built-in water tank of approx. 90L, the water can be recycled |
| Total Weight | Approx. 450kg |
| Required site place | 4.4m(D)*2.2m(W)*2.4m(H) |

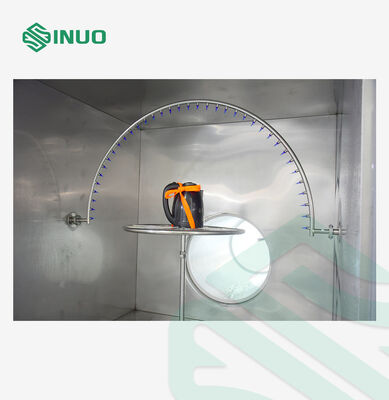

| IPX34 Oscillating Tubes Parameters | |
| Oscillation Tube |
R200 mm and R400mm and R600mm |
| Spray Aperture Spacing | 50 mm |
| Distance between Nozzle Sample | Within 200mm |
| Angle Between Two Holes |
120°(IP3) 180°(IP4) |
| Spray Pressure |
80-150Kpa |
| Needle Hole | φ0 .4 mm |
| Oscillating Speed | IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole | 0.07 L/min +5% |
| Oscillating Tube Swing Angle |
±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is aturntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved) |
Details
