| ブランド名: | Sinuo |
| モデル番号: | SN551-1000L |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 1セット/月 |

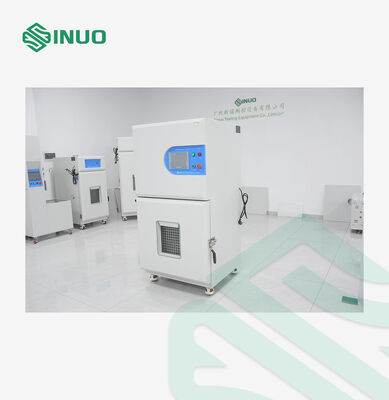

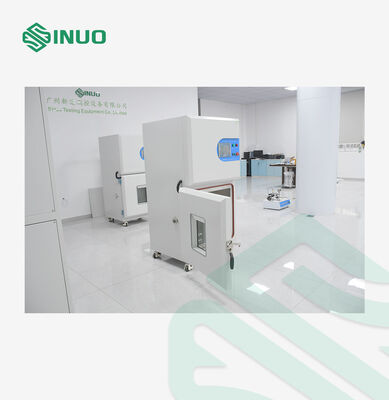

IEC 62619 Temperature Controlled External Short Circuit Tester 3000A
Complied Standards & Clauses
It is conforms to the standard of UN38.3 clause 4.5 Test T.5, UL 1642, UL 1973, IEC 62619:2017 clause 7.2.1, IEC62133-1:2017 clause 7.3.2 , IEC62133-2:2017 clause 7.3.1 and 7.3.2 , IEC62133:2014 clause 7.3.2,8.3.1, 8.3.2, IEC60086-4 clause 6.5.1, IEC60086-4 clause 6.5.8 6.5.9 , and so on .
Equipment overview
The Temperature Controlled Type External Short Circuit Tester is a professional battery safety testing system designed to evaluate the external short-circuit performance of cells, battery packs, and battery modules under controlled temperature conditions. It is widely used to assess thermal stability, current response, and safety behavior during short-circuit events.
The tester features a high-current external short-circuit system combined with precise temperature control, enabling accurate simulation of extreme abuse conditions. Intelligent monitoring and data acquisition ensure real-time measurement of voltage, current, and temperature, with automatic protection and reliable test evaluation.
The is an ideal solution for lithium-ion battery manufacturers, EV and energy storage system suppliers, certification laboratories, and R&D centers, helping ensure product safety, regulatory compliance, and market readiness.
Technical Parameters
| Max. load current | 3000A | |
| DC response time | ≤5μs | |
| Built-in resistor | ≤5mΩ (resistance can be made according to requirements) | |

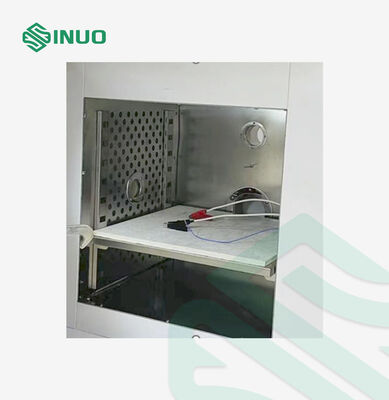

| Inner chamber size | W1000*1000H*D1000mm | |
| External chamber size | W1200 X D1200 X H1800mm (subject to final design) | |
| Control method | PLC and Touch screen | |
| Data export | USB | |
| Inner box material | Stainless steel SUS201. Thickness 2.0mm | |
| Sealing strip | Corrosion-resistant silicone. | |
| Temperature control |
Normal temperature RT+10℃~80℃ (can be preset) Temperature rise rate 3℃/min Temperature dial 1.0℃ Temperature uniformity: ±2℃ |
|
| Test stop condition |
1) The battery temperature drops to 20% lower than the peak; 2) Short circuit time |
|
| Battery surface temperature | Can monitor temperature changes during battery surface testing | |
| Hall element collects current signal |
Hall elements are used to collect the current generated when the short-circuit system is short-circuited, avoiding the generation of contact resistance, and the data transmission is stable and accurate;
|
|
| Lead hole | There is a lead hole with a diameter of 50mm on the left side of the box for test wires to pass through. | |
Details
