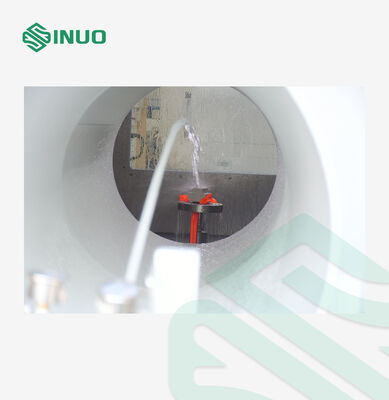

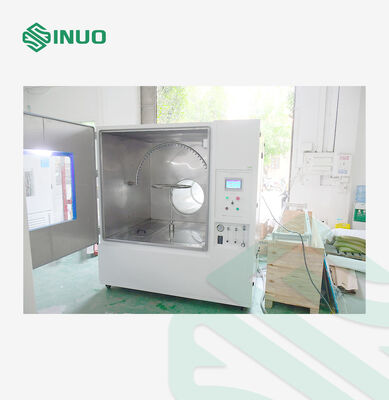

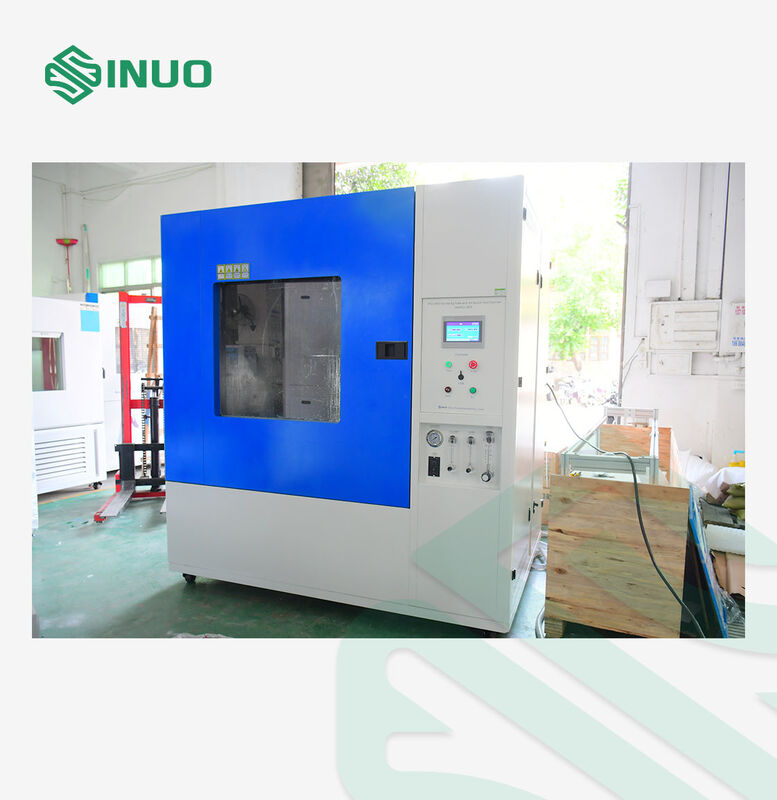

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber
Complied Standards & Clauses
Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.
Product Overview
Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.
General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated climatic conditions. After the test, judge whether the performance of the product meets the requirements by the verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
Technical Parameters
| Basic Parameters | |
| Inner Chamber Size | L1400*W1400*H1400mm |
| Outer Chamber Size | L1880*W4200*H2200mm |
| Allowed dimensions of products | Length and width ≤1000mm, height ≤100mm |
| Turntable Diameter |
￠200mm and 600mm
|
| Turntable Maximum Load Bearing | ≤20KG |
| Turntable Speed | 1-5r/min (adjustable) |
| Turntable Rotation Method | Always positive / positive and negative alternate |
| Flow Adjustment Method | Manually adjust flow by adjusting flow meter on the panel |
| Test Time | 0-999 min |
| Power supply for sample |
Configured with a waterproof socket inside the chamber for client to power on sample during test
|
| Water supply for testing |
With a built-in water tank of approx. 90L, the water can be recycled |

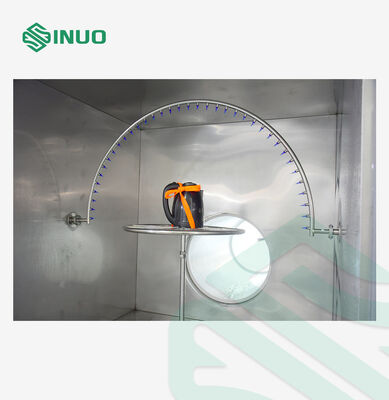

| Total Weight | Approx. 450kg |
| Required site place | 4.4m(D)*2.2m(W)*2.4m(H) |
| IPX34 Oscillating Tubes Parameters | |
| Oscillation Tube |
R200 mm and R400mm and R600mm |
| Distance between Nozzle Sample | Within 200mm |
| Spray Aperture Spacing | 50 mm |
| Oscillating Tube Swing Angle |
±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved) |
| Angle Between Two Holes |
120°(IP3) 180°(IP4) |
| Needle Hole | φ0 .4 mm |
| Oscillating Speed | IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole | 0.07 L/min +5% |
| Spray Pressure | 80-150Kpa |
