| ブランド名: | Sinuo |
| モデル番号: | SN4410 |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 30セット/月 |

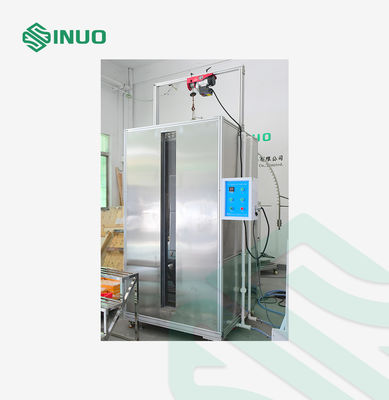

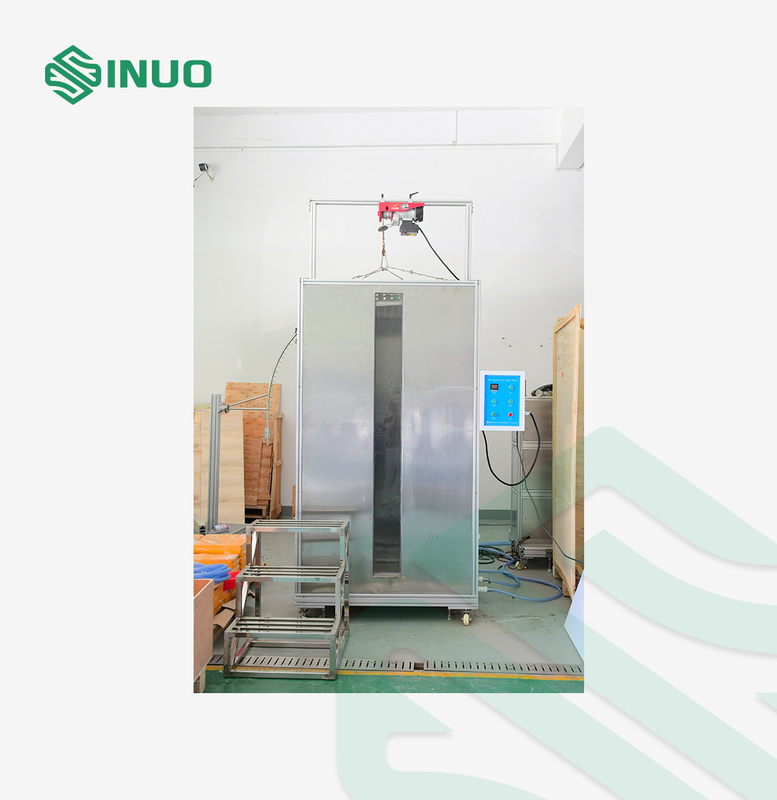

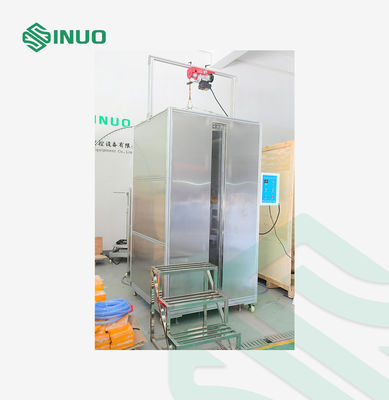

Ingress Protection Test Chamber Water Immersion Test Apparatus IPX7
Complied Standards & Clauses
IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.
Equipment Overview
The IPX7 Waterproof Test Equipment is specifically designed to evaluate the water resistance performance of various electronic and electrical products under immersion conditions. By simulating real-world submersion environments, this system accurately verifies whether the product’s waterproof protection meets the IPX7 standard requirements.
Built with a high-quality stainless-steel tank and precision control system, it ensures stable test conditions and reliable results. This equipment is widely used in R&D laboratories, quality control departments, and production lines to support product design validation, safety certification, and batch inspection.
Whether you’re testing consumer electronics, automotive components, or electrical accessories, this IPX7 waterproof tester helps ensure your products maintain consistent performance, durability, and compliance with international standards.
Technical Parameters
| Chamber external size | Approximately W 1080* D 1080*H 2300mm (including casters) |
| Chamber inner size | Length 1000* W 1000* H1800mm |
| Max. test water depth | 1.8m |
| Observation window | Tempered glass (thickness: 12mm) |
| Observation window width | 200mm |
| Water level adjustment method | Water inlet / drain valve, manual adjustment |
| Water level display | Scale (accuracy 1mm) |
| External chamber material | Stainless steel plates + Aluminum profile frame |
| Inner chamber material | 2.0mm thickness stainless steel |

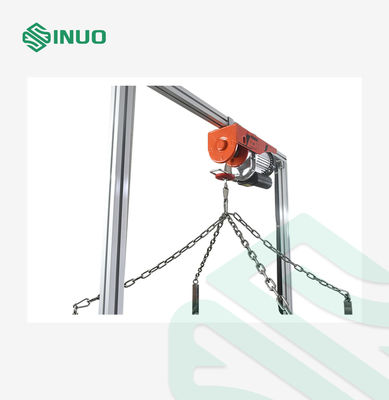

| Electric lifting basket | Made of stainless steel, controlled by electric hoist |

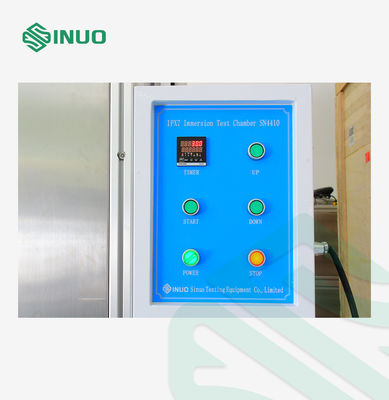

| Control method | Buttons (non-PLC) |
| Test time | 0.01 second-99.99hours can be preset |
| Immersion depth requirements |
The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water |
| Test content | IPX7 |
| Power supply | AC 220V,50Hz, 1KW |
Details
