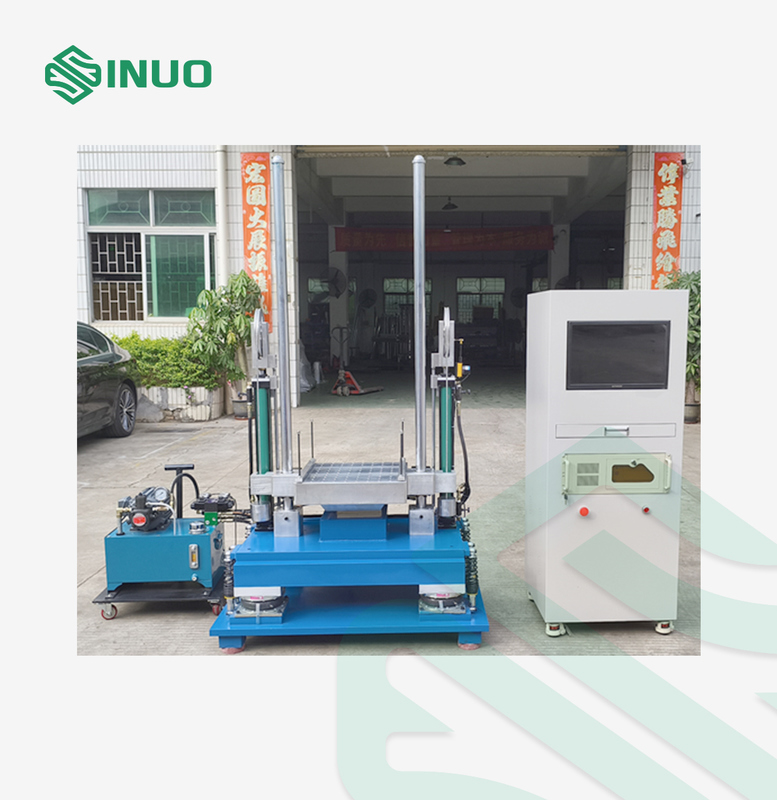

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench
Complied Standards & Clauses
Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, and MIL-STD-883E, etc.
Product Overview
This device is primarily suitable for shock testing applications in electronics, aerospace, shipbuilding, military, automotive, and transportation. By selecting different waveform generators, it can perform shock tests using half-sine, post-peak sawtooth, or square waves.
Ambient Temperature: 5℃ ~ +28℃ (average temperature within 24 hours ≤ 28℃)
Relative Humidity: ≤ 85% RH

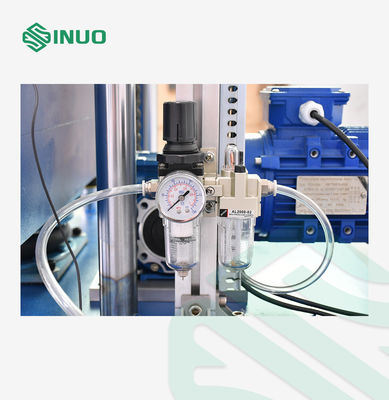

Air Supply: 0.5 – 0.8 MPa
Power Supply: Three-phase, five-wire system
Voltage Input: AC 380V
Frequency Fluctuation Range: (50 ± 0.5) Hz
Grounding Resistance: PGND cable resistance < 4 Ω
Installation Requirement:
The user shall provide an air or power switch of appropriate capacity at the installation site. This switch must be dedicated exclusively to this equipment.
Technical Parameters
| Working platform | 800 × 800 mm |
| Working platform Material | High-strength imported high-quality aluminum alloy |
| Maximum load | 300kg |
| Half-sine peak acceleration | 15—350 G |
| Half-sine pulse duration | 2.5—30ms |
| Lifting method | Hydraulic lift |
| Equipment size | 1600× 1300× 2250mm |
| Equipment weight | 2000 kg |
| Measuring System | |
| Input channel | 2 channels |
| Sampling frequency | 192KHz |
| Input form | Voltage, Electric Charge |
| Voltage range | -10v--+10v |
| Coupling method | AC, DC, ICP |
| Shock waveform | Half Sine |
| Communication interface | USB2.0 |
| Support standard | National standard, national military standard, U.S. military standard, user-defined standard |
| Operating system | Microsoft Windows7/10 |
| System Acceleration Sensor | |
| Brand | YMC |
| Output method | Charge type |
| Sensitivity | 3.93pC/g |
| Frequency range | 0.5—12KHz |
| Acceleration range | ±2500G |
| Working environment | -40~+160℃ |
| Other Instructions | |
| Power supply | 380V±10％ |
