| ブランド名: | Sinuo |
| モデル番号: | SN441C-SC6 |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 1セット/月 |
6 m³ Walk-in Sand and Dust Environmental Tester for Automotive Testing
Complied Standards & Clauses
This equipment complies with the test requirements specified in GB2423.37-2006 (Environmental Testing for Electric and Electronic Products – Part 2: Test Methods – Test L: Sand and Dust Test, Test Lb).
Equipment Overview
Product Features:

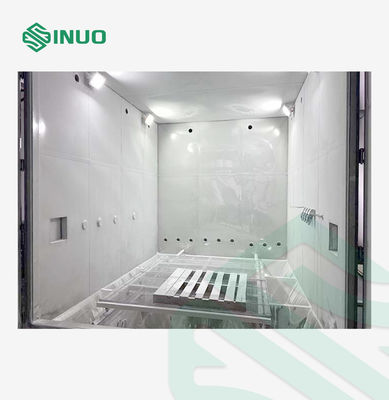

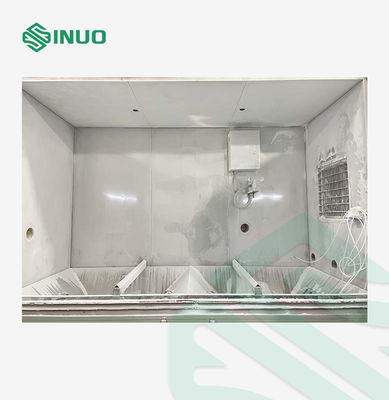

1. The equipment adopts a walk-in modular structure. Inside the chamber, each of the four corners has a funnel, and the middle section uses a rotating dust brush mechanism, which sweeps dust into the side funnels.
2. The air inlet of the working chamber is equipped with a rotating sand feeding device to meet dust-blowing requirements.
3. The air circulation duct is equipped with a heating and dehumidification system.

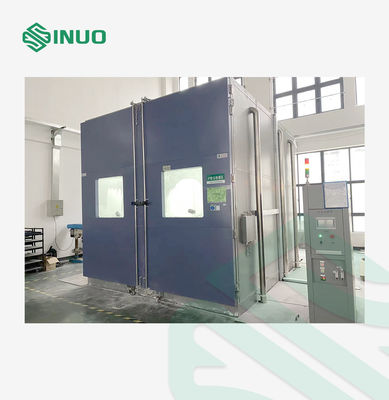

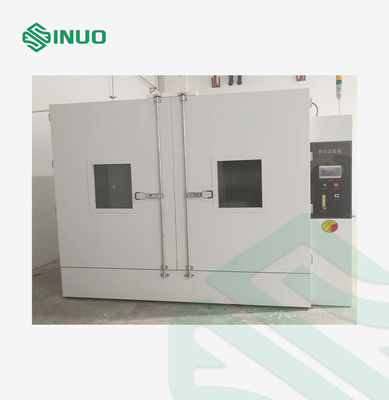

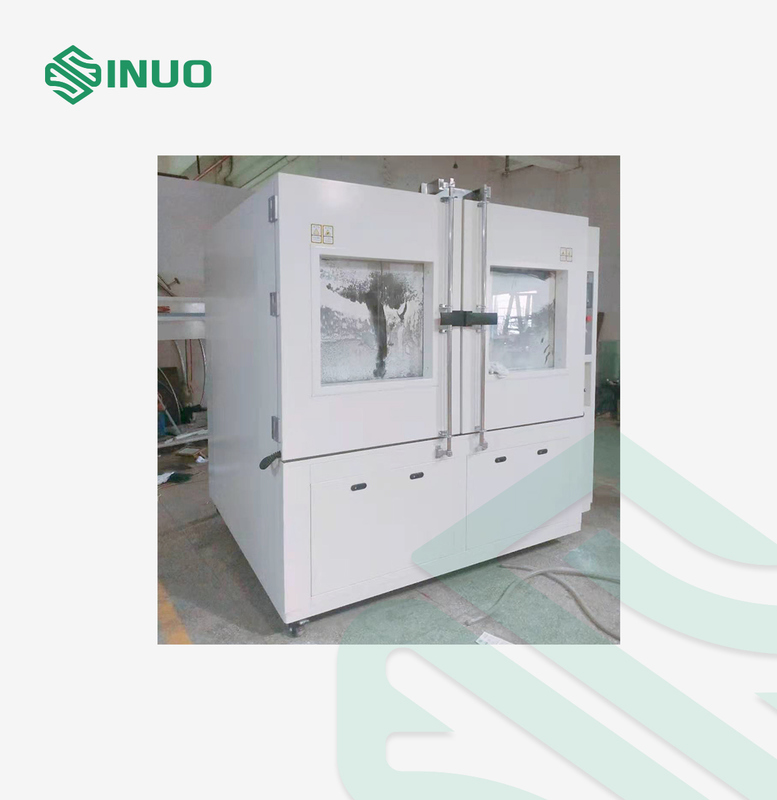

4. The door is a double-opening type with observation windows, sealed with double-layer aging-resistant silicone rubber gaskets.
5. The outer shell and air duct are made of high-strength, double-sided galvanized steel plates with a powder-coated finish; the inner chamber is made of SUS304 stainless steel; and the frame is constructed from 10# square steel tubing, treated for rust protection and spray-coated.
6. Temperature and humidity control are managed by an intelligent controller (with direct-reading humidity sensor and touchscreen interface).
Product Purpose:
This equipment is used to test electrical and electronic products, automotive and motorcycle components, and sealing parts for their ability to prevent dust ingress under dusty environmental conditions.It evaluates the product’s performance during use, storage, and transport in dusty atmospheres.The test determines the potential harmful effects of airborne dust particles on electrical products and simulates dust-laden air environments caused by natural conditions or vehicle-induced disturbances.
Technical Parameters
| Volume and Dimensions | |
| Sample Size |
Width: 36–39 inches (≈ 91.44–99.06 cm) Height: 70–72 inches (≈ 177.8–182.88 cm) Depth: 30–36 inches (≈ 76.2–91.44 cm) |
| Effective Internal Volume | Approx. 6 m³ |
| Internal Chamber Dimensions | 1500*1500*2500 mm (W*D*H) |
| Door Opening | 1400*1500 mm (W*H) |
| External Dimensions | Approx. 2500*2300*3300 mm (W*D*H) |
| Functional Parameters | |
| Working Chamber Temperature | RT +10°C to +70°C |
| Working Chamber Humidity | ≤75% RH (not displayed or controlled) |
| Vacuum Degree | ≤10 kPa |
| Dust Type | Talcum powder |
| Dust Particle Size | Passes through a 75 µm mesh (wire diameter 50 µm) |
| Dust Concentration | 2–4 kg/m³ |
| Airflow Meter | Mechanical type |
| Airflow Velocity | ≤2 m/s |
| Time Control | Dust blowing period: 1 s–99 h (adjustable); test duration: 1 s–99 h (adjustable); vibration time: 1 s–99 h (adjustable) |
| Metal Mesh | Wire diameter ≥50 µm; mesh spacing ≥75 µm |
| Dust Circulation System | Equipped with a high-power mixed-flow fan and circulation duct; suction volume 80× test enclosure volume; flow ≤60× per hour; vertical airflow from top to bottom; uniform dust distribution; calibrated pressure gauge port |
| Sample Platform Load Capacity | ≥200 kg |
| Dust Drying System | Equipped with a dust drying heater; controlled via touchscreen; enables drying without interrupting the test; ensures consistent dust concentration |
| Dust Replacement | Manual replacement using a vacuum cleaner; convenient and efficient |
