| ブランド名: | Sinuo |
| モデル番号: | SN881-G1800 |
| MOQ: | 1 |
| 支払条件: | T/T |
| 供給能力: | 月額10セット |
Environmental Simulation Equipment Temperature and Humidity Test Chamber
Complied Standards & Clauses
It conforms to standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview

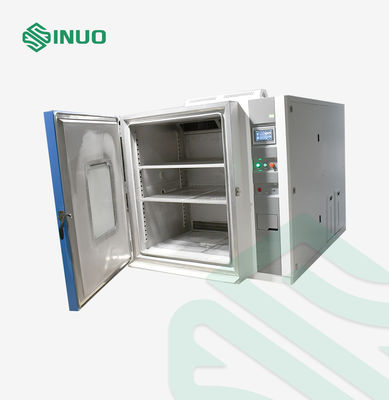

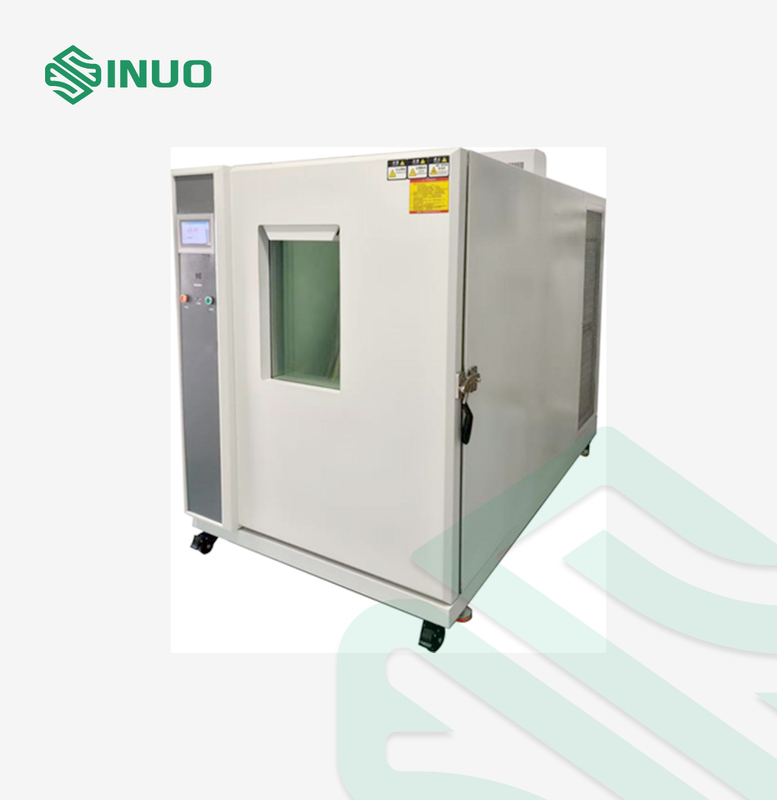

The Temperature and Humidity Test Chamber is designed to simulate a wide range of environmental conditions — from extreme heat to intense cold and fluctuating humidity. It provides precise and stable temperature and humidity control, ensuring reliable testing of electronic components, electrical devices, plastics, and other materials. By recreating real-world storage and transportation conditions, this chamber helps you evaluate product durability, stability, and performance in demanding environments. Perfect for R&D, quality control, and certification testing.
Technical Parameters
| Technical Parameters | ||
| Nominal Volume | 1800L | |
| Inner Size | W1000*D1000*H1800mm | |
| External Size | W1250*D2300*H2350mm | |
| Weight | Approx. 1050 kg | |
| Temperature Range | -40 °C ~+150°C | |
| Humidity Range |
20%～98%RH(within 20°C–85°C, refer to temperature-humidity control chart; no active heat load) |
|
| Temperature Fluctuation | ±0.5℃ | |
| Humidity Fluctuation | ≤2.5% | |
| Temperature Deviation | ≤±2.0℃ | |
| Humidity Deviation | ≤±3% | |
| Heating Rate | ≧2-3°C/min(average, no load) | |
| Cooling Rate | ≥1°C/min(average, no load) | |
| Load Capacity | 50 kg | |
| Noise Level | A-weighted sound level ≤70 dB(A) (measured in a 25°C quiet environment, A-weighted, average of 9 points, 1m from source and 1m above ground) |
|
| Structural Features | ||
|
Thermal Insulation Structure
|

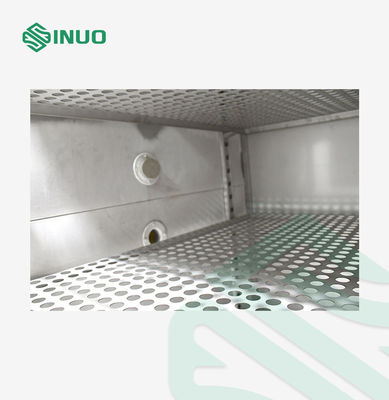

1.Outer wall material: A3 steel plate with spray coating. 2.Inner wall material: Brushed stainless steel plate SUS#304. 3.Thermal insulation material for the box body: 100mm high-temperature-resistant rigid polyurethane foam. 4.Thermal insulation material for the door: 100mm high-temperature-resistant rigid polyurethane foam. |
|
| Bottom Structural Strength | The bottom of the test chamber is designed with track load-bearing capacity: ≤100kg/m² (load). | |
| Air Conditioning Channel |

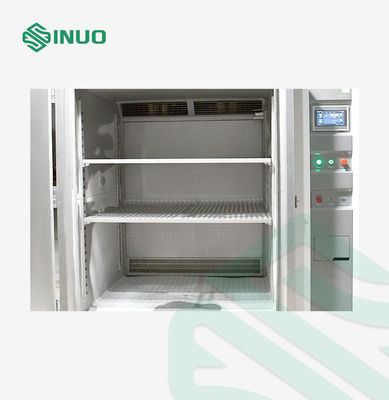

1.Stainless steel long-shaft centrifugal fan: 4 units/90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air guide plate, temperature sensor. |
|
| Standard Configuration of the Test Chamber |
1.Window: 400x600x40mm, 3 layers of vacuum tempered glass. 2.Embedded flat handle. 3.Door hinge: SUS #304 imported hinge. 4.Internal energy-saving light: LED energy-saving light. 5.Lead hole: φ50mm, 1 unit. |
|
| Door |
1.Single door, hinge on the left, handle on the right (when facing the front of the chamber). 2.Equipped with a safety door lock mechanism (the door can be opened from inside the test chamber). The door is equipped with electric anti-condensation heating, and the hollow glass observation window has a viewing area of approximately (W400×H600mm). The door frame is equipped with anti-condensation electric heating. |
|
| Control Panel | Controller with 7-inch display, temperature (humidity) control display, operation indicator light, and lighting button. | |
| Mechanical Room | Refrigeration unit, compressor water tray, pressure relief device, heating device. | |
| Power Distribution Cabinet | Power distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker. | |
| Heater |
1.Finned stainless-steel tubular heater. 2.Heating control mode: SSR (solid-state relay), non-contact periodic pulse width modulation. 3.Heating power: approximately 3KW. |
|
| Power Line Hole | Located on the back of the chamber. | |
Details
