| ブランド名: | Sinuo |
| モデル番号: | SN7713A |
| MOQ: | 1 |
| 価格: | Customized |
| 支払条件: | T/T |
| 供給能力: | 5セット/月 |

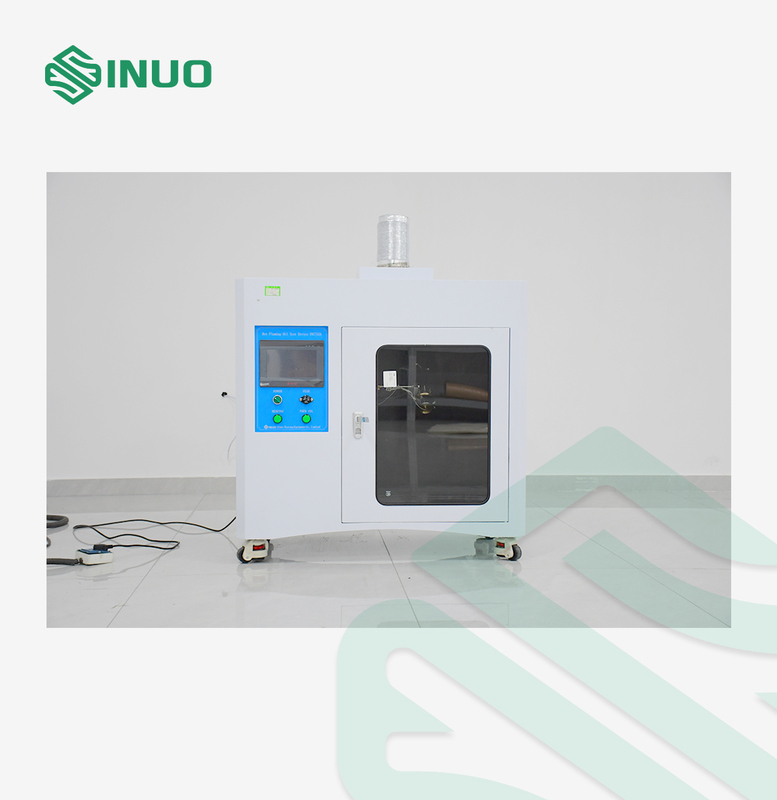

Hot Flaming Oil Test Device IEC60950 Fire Hazard Testing Machine
Complied Standards & Clauses
The hot flaming oil test device conforms to Annex S.3 of IEC 62368-1: 2018, IEC60950-1:2005 and IEC60950-1:2013 clause 4.6.2, Annex A.3.
Equipment Structure
It is used to simulate that the flammable liquids used in electrical and electronic equipment may ignite due to overheating and leak out of the fire protection enclosure, causing electrical fires and endangering the reliable operation of the equipment and personal safety.

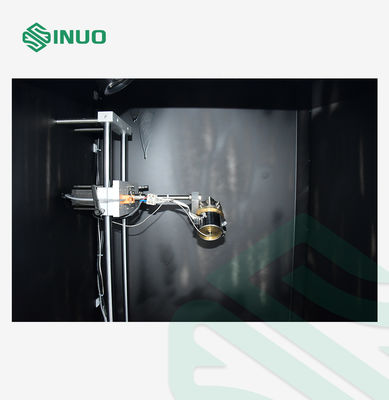

Fill 10mL of flammable liquid with the specified performance (average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃) in the metal ladle, after heating to the distillate fuel oil’s ignition point and burning 1mim, the motor drives the spoon to rotate at a certain height (100mm) and a certain flow rate (1mL/s), and then steadily pour the flammable liquid on the center of the opening of the sample (fire protection enclosure). The fire protection performance of the test product is evaluated by whether the ignition bedding at the specified distance (50mm) and with the specified density (40g/m2) under the test product is ignited.
Technical Parameters
| Parameter model | SN7713A |
| Control & display | Integrated PLC & touch screen |
| Working voltage | Match client’s local power supply requirements |
| Test oil | Average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃ |
| Volume of ladle | >10mL |
| Hot flaming oil burning time | 1 min (1s~999999s can be preset) |
| Hot flaming oil pouring speed | 1 ml/s |
| Hot flaming oil pouring height | 100mm |
| Hot flaming oil pouring time | 10s (1s~999999s can be preset) |
| Ignition bedding material | Bleached CHEESECLOTH of approximately 40 g/m2 |
| Distance between ignition bedding material and sample | Ignition bedding material is under the sample about 50mm |
| Test area background color | Black |
| Equipment size & weight | 1130mm* 600mm* 1400mm, with a vent port of ф100mm, 147KGS |
