IEC 60529 IPX1–IPX4 Waterproof Test Chamber Ingress Protection Testing for Auto Parts
Complied Standards & Clauses
IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3, IPX4.
Equipment Overview

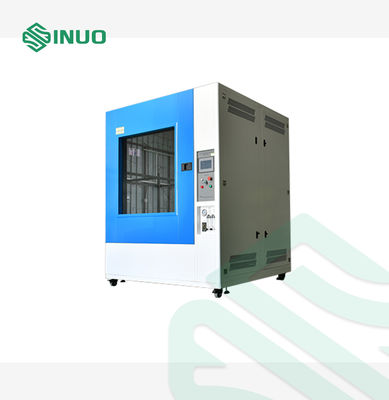

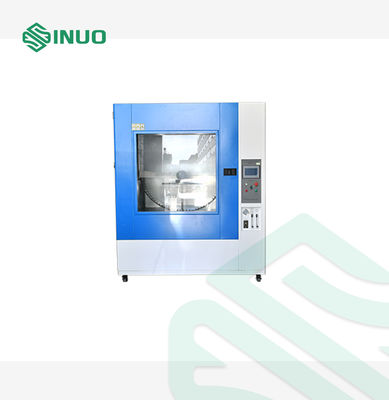

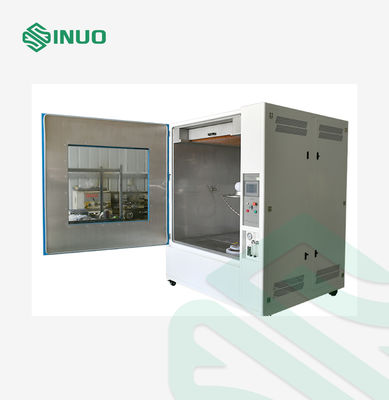

Designed in strict accordance with IEC 60529:2013 standards, this IP Waterproof Test Chamber provides precise and reliable testing for IPX1 to IPX4 protection levels. It simulates real-world conditions such as dripping water, spraying, and splashing, ensuring that enclosures of electrical and electronic products, automobiles, motorcycle parts, household appliances, outdoor lighting, and signal devices meet international waterproof performance requirements.

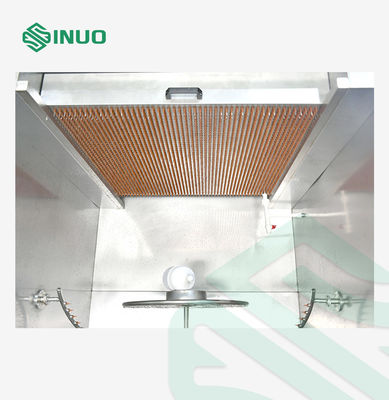

Equipped with a drip mechanism, oscillating spray system, turntable, and intelligent control cabinet, the chamber delivers uniform and repeatable test results. The turntable supports adjustable height and 15° inclination for IPX2 testing, while a built-in water filter ensures smooth operation without nozzle blockage.
With a robust chamber-type structure, stable AC380V power supply, and efficient water circulation system, this equipment is engineered for durability, accuracy, and ease of use. It is the ideal solution for manufacturers, quality control laboratories, and certification bodies seeking dependable ingress protection testing.
Technical Parameters
| IPX1 & IPX2 Vertical Drip | |
| Drip Box Position |
Located at the top of the inner chamber, fixed |
| Needle Pinhole Aperture | Φ0.4mm |
| Drip Height | 200mm distance of the needle to the sample is achieved by adjusting the height of the turntable or raising the specimen |
|
Drip Speed (Water Flow) |
1+0.50mm/min or 3+0.50mm/min adjustable |
| Drip Hole Spacing | 20mmx20mm |
| Chamber Size |
Inner size: WDH=900×900mm×1050mm Outer size: WDH=1350×1150mm×1750mm |
| Drip Area | WD=600×600mm, other sizes can be customized |
| IPX3 & IPX4 Oscillating Tube | |
| Oscillating Speed |
IPX3:4s /cycle(2×120°); IPX4:12s /cycle(2×350°); |
| Needle Pinhole Aperture | Φ0.4mm |
| Oscillating Angle |
IPX3:120°(±60°)； IPX4:350°(±175°) |
| IPX3/4 Switching | Switching by changing a certain number of blind hole needles or through-hole needles |

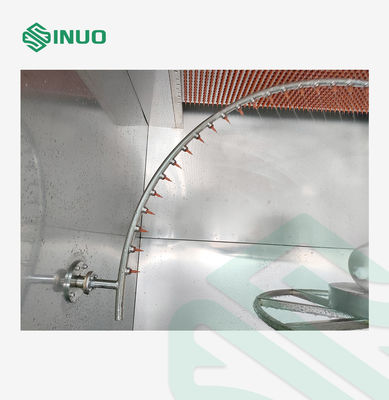

| Oscillating Tube | R400mm, R200mm is optional, made of stainless steel |
| Spray Holes Distribution |
IPX3:over an arc of 60° either side of the center point (120°) IPX4:over the whole 180° of the semicircle Hole spacing: 50mm |
| Oscillating Tube Position | Located in the middle of the inner chamber, the left and right ends are fixed on the side wall of the inner chamber |
| General | |
| Chamber Material | Inner chamber is made of SUS304 stainless steel |
| Control & Operation | PLC and touch screen intelligent control system |
| Test Duration | 0-99.9min, can be preset |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection |
| Waterproof Turntable | Diameter:Φ400mm,rotation speed: 1-5r/min, with 15° sample support block,and lifting frame 400-750mm adjustable, bearing capacity:≤50kgs |
