| ブランド名: | Sinuo |
| モデル番号: | SN441-1800L |
| MOQ: | 1 |
| 支払条件: | T/T |
| 供給能力: | 月額10セット |
IP5X & IP6X Ingress Protection Testing Sand and Dust Test Chamber 1000L
Complied Standards & Clauses
The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Product Overview

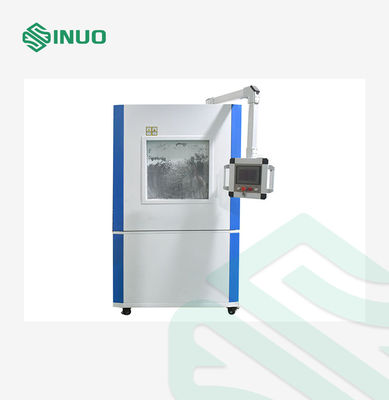

The Sand and Dust Test Chamber SN441-1000L is specially designed to simulate dust and sand environmental conditions for evaluating the protective performance of electrical and electronic products, automotive and motorcycle components, and sealing parts.
It helps determine the resistance of products to dust ingress, which may affect operation, safety, and durability. The chamber complies with IEC 60529 (IP5X/IP6X), IEC 60598-1, and IEC 60335-1 standards, ensuring accurate and reliable testing results.
This chamber is widely applied in R&D, quality inspection, and industrial certification for products that must perform reliably in dusty or sandy conditions such as outdoor electronics, lighting, automotive systems, and more.
Technical Parameters
|
Model |
SN441 |
|---|---|
| Working size (mm) | L1000 × W1000 × H1000 |
| Outer size (mm) | L1450 × W1250 × H2200 |
| Baking dust temperature range | RT+10℃ ~ 60℃ |
| Fine dust | ≤75 μm |
| Coarse dust | ≤150 μm |
| Air flow velocity | ≤2 m/s |
| Dust concentration | 2 kg/m³ |
| Talcum powder dosage | 2–5 kg/m³ |
| Dust blowing method | Top to bottom |
| Air flow meter | 1–20 L/min |
| Negative pressure difference range | -10 ~ 0 kPa (adjustable) |
| Metal mesh diameter | 50 μm |
| Spacing between lines | ≤75 μm or ≤150 μm |
| Shock time | 1 s ~ 99 h (adjustable) |
| Test time | 1 s ~ 99 h (adjustable) |
| Dust blowing cycle | 1 s ~ 99 h (adjustable) |
| Vacuum time | 1 s ~ 99 h (adjustable) |
| Preset test time | 0.1 h ~ 9999.9 h |
| Circulation fan | Low-noise alloy centrifugal fan |
| Load capacity | 20 kg |
| Observation window | 1 pc |
| Lighting lamp | 1 pc |

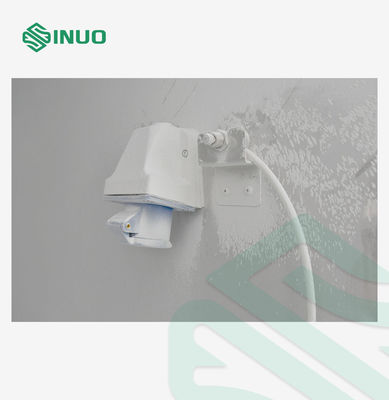

| Sample power socket | Dust-proof AC220V 16A |

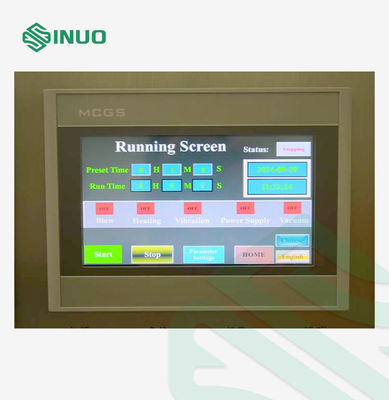

| Control system | PLC + Touch Screen |
| Vacuum system | Regulating valve, nozzle, vacuum pump, pipes |
| Dust heating system | Stainless steel mica heating sleeve |
| Inner chamber material | SUS201 stainless steel mirror panel |
| Outer chamber material | A3 iron plate with electrostatic spray finish |
| Power supply | AC380V, 3-phase, 5-wire, 50Hz |
| Power | 3 kW (no load) |
| Safety protection | Phase sequence protection, leakage protection |
Details
